PCK

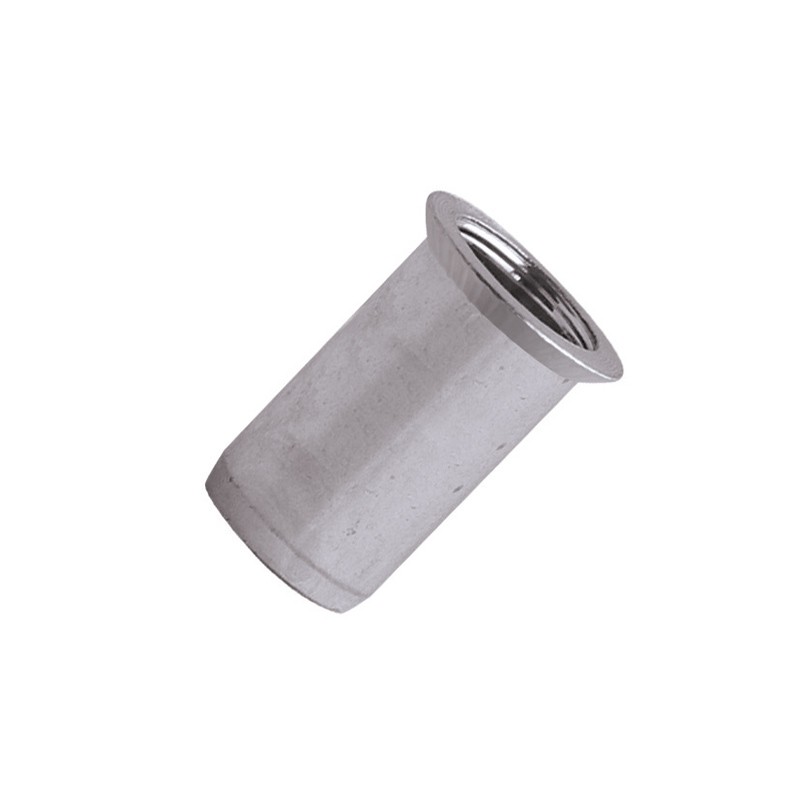

ecrou-cylindrique-lisse-acier-tete-fraisee
Dimensions
Technical data
| Diameter | length | G | K | Shear | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| M4 | 11.5 | 1.5-3.5 | 9.0 | 2200 | 6.0 | 8000 | PCK0435 | |
|
Diameter : M4 length : 11.5 G : 1.5-3.5 K : 9.0 Shear : 2200 ØDrill : 6.0 Tensile : 8000 |
||||||||
| M5 | 13.5 | 1.5-4.0 | 10.0 | 2300 | 7.0 | 11000 | PCK0540 | |
|
Diameter : M5 length : 13.5 G : 1.5-4.0 K : 10.0 Shear : 2300 ØDrill : 7.0 Tensile : 11000 |
||||||||
| M6 | 16.0 | 1.5-4.5 | 12.0 | 3700 | 9.0 | 17000 | PCK0645 | |
|
Diameter : M6 length : 16.0 G : 1.5-4.5 K : 12.0 Shear : 3700 ØDrill : 9.0 Tensile : 17000 |
||||||||
| M8 | 19.0 | 1.5-4.5 | 14.0 | 4800 | 11.0 | 31400 | PCK0845 | |
|
Diameter : M8 length : 19.0 G : 1.5-4.5 K : 14.0 Shear : 4800 ØDrill : 11.0 Tensile : 31400 |
||||||||
