TCD
tcdecrou-crante-acier-zingue-tete-plate

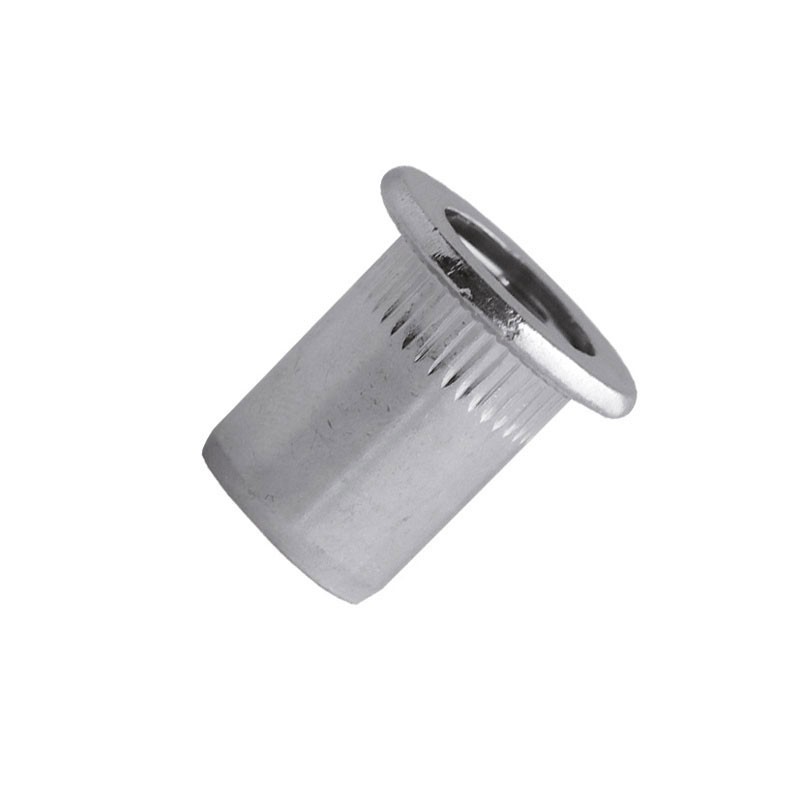

blind rivet nut - steel zinc plated - cylindrical head
Dimensions
Technical data
| Diameter | length | G | Shear | K | ØDrill | Tensile | Référence | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
||||||||||
| M3 | 10,9 | 0.5-3.0 | 990 | 7.0 | 5.0 | 4000 | TCD0330 | ||||
|
Diameter : M3 length : 10,9 G : 0.5-3.0 Shear : 990 K : 7.0 ØDrill : 5.0 Tensile : 4000 |
|||||||||||
| M4 | 11,0 | 0.3-3.0 | 1700 | 9.0 | 6.0 | 5000 | TCD0430 | ||||
|
Diameter : M4 length : 11,0 G : 0.3-3.0 Shear : 1700 K : 9.0 ØDrill : 6.0 Tensile : 5000 |
|||||||||||
| M4 | 12,5 | 3.1-4.0 | 1700 | 9.0 | 6.0 | 5000 | TCD0440 | ||||
|
Diameter : M4 length : 12,5 G : 3.1-4.0 Shear : 1700 K : 9.0 ØDrill : 6.0 Tensile : 5000 |
|||||||||||
| M5 | 13,0 | 0.3-3.0 | 2800 | 5.0 | 7.0 | 11300 | TCD0530 | ||||
|
Diameter : M5 length : 13,0 G : 0.3-3.0 Shear : 2800 K : 5.0 ØDrill : 7.0 Tensile : 11300 |
|||||||||||
| M5 | 16,0 | 3.1-4.0 | 2800 | 5.0 | 7.0 | 11300 | TCD0540 | ||||
|
Diameter : M5 length : 16,0 G : 3.1-4.0 Shear : 2800 K : 5.0 ØDrill : 7.0 Tensile : 11300 |
|||||||||||
| M6 | 16,0 | 0.5-3.0 | 3500 | 13.0 | 9.0 | 18000 | TCD0630 | ||||
|
Diameter : M6 length : 16,0 G : 0.5-3.0 Shear : 3500 K : 13.0 ØDrill : 9.0 Tensile : 18000 |
|||||||||||
| M6 | 17,5 | 3.1-4.5 | 3500 | 13.0 | 9.0 | 18000 | TCD0645 | ||||
|
Diameter : M6 length : 17,5 G : 3.1-4.5 Shear : 3500 K : 13.0 ØDrill : 9.0 Tensile : 18000 |
|||||||||||
| M8 | 17,5 | 0.5-3.0 | 4500 | 16.0 | 11.0 | 28000 | TCD0830 | ||||
|
Diameter : M8 length : 17,5 G : 0.5-3.0 Shear : 4500 K : 16.0 ØDrill : 11.0 Tensile : 28000 |
|||||||||||
| M8 | 20,0 | 3.1-5.5 | 4500 | 16.0 | 11.0 | 28000 | TCD0855 | ||||
|
Diameter : M8 length : 20,0 G : 3.1-5.5 Shear : 4500 K : 16.0 ØDrill : 11.0 Tensile : 28000 |
|||||||||||
| M10 | 19,0 | 0.5-3.0 | 5000 | 19.0 | 13.0 | 29000 | TCD1030 | ||||
|
Diameter : M10 length : 19,0 G : 0.5-3.0 Shear : 5000 K : 19.0 ØDrill : 13.0 Tensile : 29000 |
|||||||||||
| M10 | 24,0 | 3.1-6.0 | 5000 | 19.0 | 13.0 | 29000 | TCD1060 | ||||
|
Diameter : M10 length : 24,0 G : 3.1-6.0 Shear : 5000 K : 19.0 ØDrill : 13.0 Tensile : 29000 |
|||||||||||
| M12 | 25,0 | 1.0-4.0 | 6800 | 23.0 | 16.0 | 48000 | TCD1240 | ||||
|
Diameter : M12 length : 25,0 G : 1.0-4.0 Shear : 6800 K : 23.0 ØDrill : 16.0 Tensile : 48000 |
|||||||||||
