TCR

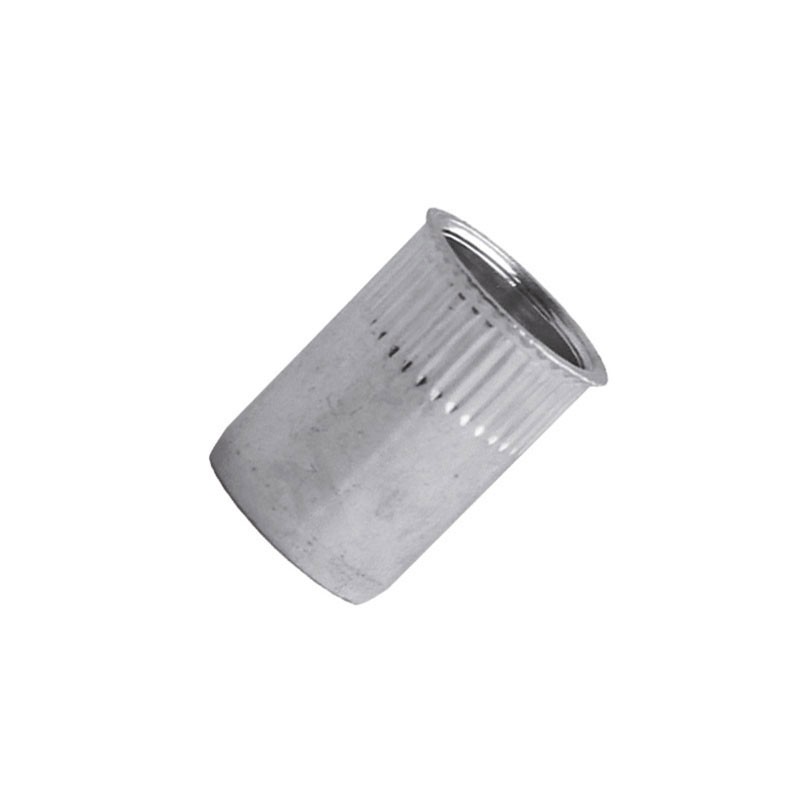

tcrecrou-crante-acier-zingue-tete-reduite-90
Dimensions
Technical data
| Diameter | length | G | Shear | K | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| M3 | 9,5 | 0.5-2.5 | 1000 | 6.0 | 5.0 | 5000 | TCR0325 | |
|
Diameter : M3 length : 9,5 G : 0.5-2.5 Shear : 1000 K : 6.0 ØDrill : 5.0 Tensile : 5000 |
||||||||
| M4 | 10,0 | 0.5-3.0 | 1600 | 7.0 | 6.0 | 6600 | TCR0430 | |
|
Diameter : M4 length : 10,0 G : 0.5-3.0 Shear : 1600 K : 7.0 ØDrill : 6.0 Tensile : 6600 |
||||||||
| M5 | 11,5 | 0.5-3.0 | 2200 | 8.0 | 7.0 | 9200 | TCR0530 | |
|
Diameter : M5 length : 11,5 G : 0.5-3.0 Shear : 2200 K : 8.0 ØDrill : 7.0 Tensile : 9200 |
||||||||
| M6 | 14,0 | 0.5-3.0 | 2400 | 5.0 | 9.0 | 17000 | TCR0630 | |
|
Diameter : M6 length : 14,0 G : 0.5-3.0 Shear : 2400 K : 5.0 ØDrill : 9.0 Tensile : 17000 |
||||||||
| M8 | 15,5 | 0.5-3.0 | 2900 | 12.0 | 11.0 | 22000 | TCR0830 | |
|
Diameter : M8 length : 15,5 G : 0.5-3.0 Shear : 2900 K : 12.0 ØDrill : 11.0 Tensile : 22000 |
||||||||
| M10 | 19,5 | 0.8-3.5 | 4300 | 13.5 | 13.0 | 32400 | TCR1035 | |
|
Diameter : M10 length : 19,5 G : 0.8-3.5 Shear : 4300 K : 13.5 ØDrill : 13.0 Tensile : 32400 |
||||||||
