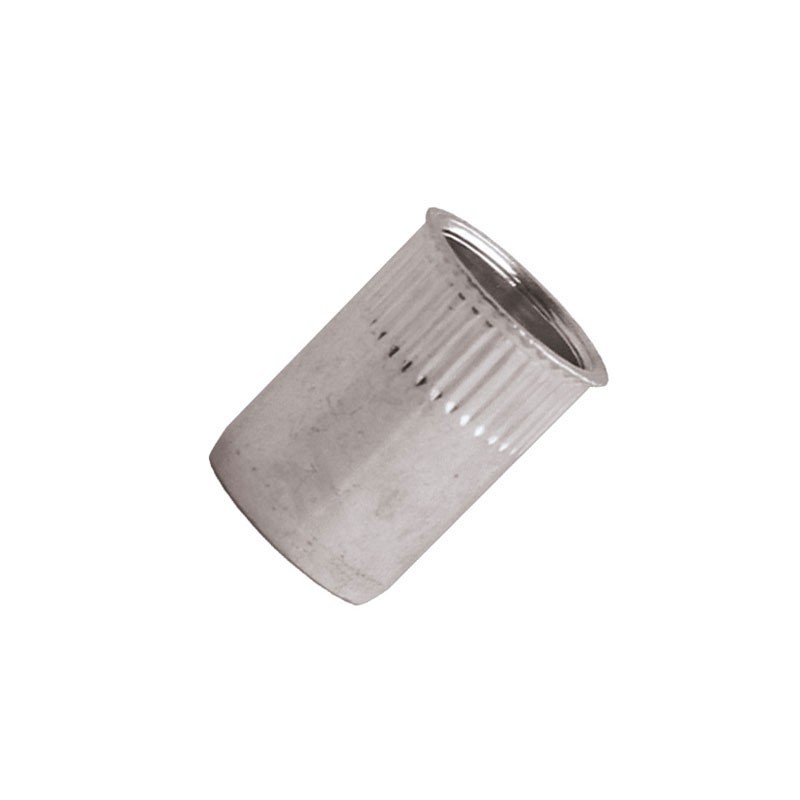

blind rivet nut - stainless steel A2 - reduced head 90°

Download PDF file

Dimensions

Technical data

Diameter length Shear ØDrill Tensile G K Référence
Diamètre Ø perçage
mm
M4 10,0 2600 6.0 6800 0.5-3.0 7.0 ENR0430
Diameter : M4
length : 10,0
Shear : 2600
ØDrill : 6.0
Tensile : 6800
G : 0.5-3.0
K : 7.0
M5 11,5 2900 7.0 11700 0.5-3.0 8.0 ENR0530
Diameter : M5
length : 11,5
Shear : 2900
ØDrill : 7.0
Tensile : 11700
G : 0.5-3.0
K : 8.0
M6 14,0 4900 9.0 18000 0.5-3.0 5.0 ENR0630
Diameter : M6
length : 14,0
Shear : 4900
ØDrill : 9.0
Tensile : 18000
G : 0.5-3.0
K : 5.0
M8 15,5 6800 11.0 24000 0.5-3.0 12.0 ENR0830
Diameter : M8
length : 15,5
Shear : 6800
ØDrill : 11.0
Tensile : 24000
G : 0.5-3.0
K : 12.0
M10 19,5 7800 13.0 29000 0.8-3.5 13.5 ENR1035
Diameter : M10
length : 19,5
Shear : 7800
ØDrill : 13.0
Tensile : 29000
G : 0.8-3.5
K : 13.5
