HCD
hcdecrou-hexagonal-acier-zingue-tete-plate

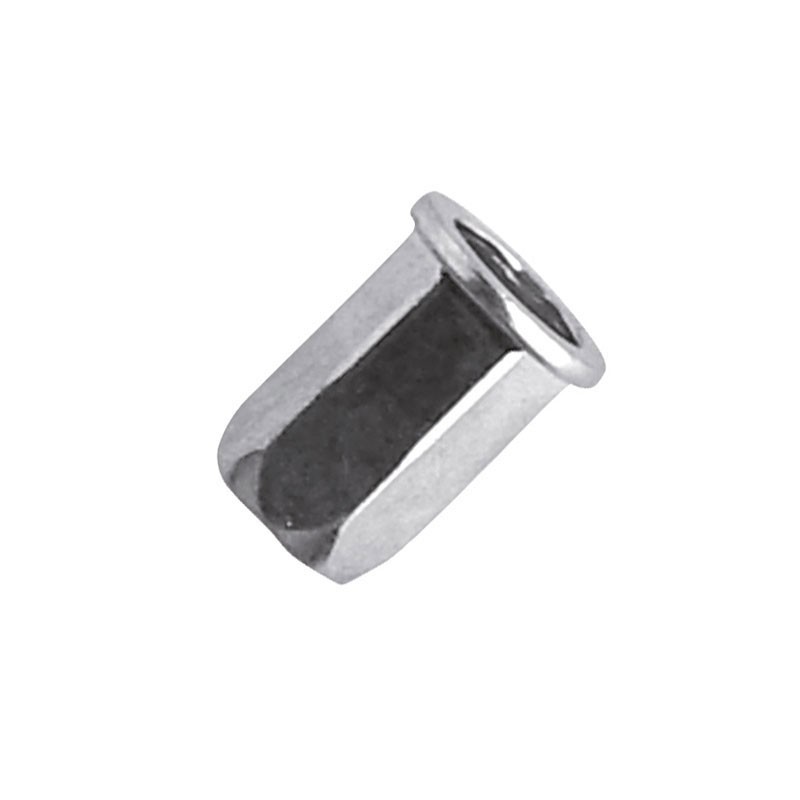

blind rivet nut - Hexagon body - steel zinc plated - cylindrical head
Dimensions
Technical data
| Diameter | length | G | K | Shear | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| M4 | 12,5 | 0.5-3.0 | 9.3 | 2300 | 6.1 | 6400 | HCD0430 | |
|
Diameter : M4 length : 12,5 G : 0.5-3.0 K : 9.3 Shear : 2300 ØDrill : 6.1 Tensile : 6400 |
||||||||
| M5 | 14,5 | 0.5-3.0 | 10.3 | 3600 | 7.1 | 11000 | HCD0530 | |
|
Diameter : M5 length : 14,5 G : 0.5-3.0 K : 10.3 Shear : 3600 ØDrill : 7.1 Tensile : 11000 |
||||||||
| M6 | 17,0 | 0.5-3.0 | 12.3 | 4300 | 9.1 | 18000 | HCD0630 | |
|
Diameter : M6 length : 17,0 G : 0.5-3.0 K : 12.3 Shear : 4300 ØDrill : 9.1 Tensile : 18000 |
||||||||
| M8 | 19,0 | 0.5-3.0 | 14.3 | 5000 | 11.1 | 28000 | HCD0830 | |
|
Diameter : M8 length : 19,0 G : 0.5-3.0 K : 14.3 Shear : 5000 ØDrill : 11.1 Tensile : 28000 |
||||||||
| M10 | 24,0 | 1.0-4.0 | 16.3 | 6000 | 13.1 | 30000 | HCD1040 | |
|
Diameter : M10 length : 24,0 G : 1.0-4.0 K : 16.3 Shear : 6000 ØDrill : 13.1 Tensile : 30000 |
||||||||
