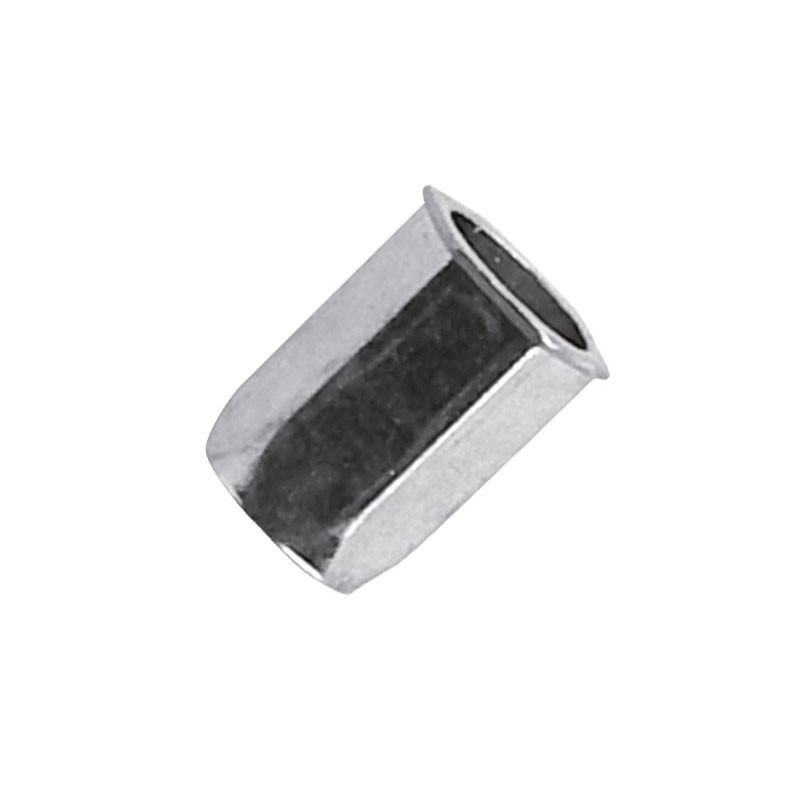

blind rivet nut - Hexagon body - steel zinc plated - reduced head 90°

blind rivet nut - Hexagon body - steel zinc plated - reduced head 90°

Download PDF file

Dimensions

Technical data

Diameter length G K Shear ØDrill Tensile Référence
Diamètre Ø perçage
mm
M4 12,0 0.5-3.0 7.0 1900 6.1 6000 HCR0430
Diameter : M4
length : 12,0
G : 0.5-3.0
K : 7.0
Shear : 1900
ØDrill : 6.1
Tensile : 6000
M5 14,0 0.5-2.5 8.0 2400 7.1 10800 HCR0525
Diameter : M5
length : 14,0
G : 0.5-2.5
K : 8.0
Shear : 2400
ØDrill : 7.1
Tensile : 10800
M6 16,0 0.5-2.5 5.0 3000 9.1 20000 HCR0625
Diameter : M6
length : 16,0
G : 0.5-2.5
K : 5.0
Shear : 3000
ØDrill : 9.1
Tensile : 20000
M8 18,0 0.5-2.5 12.0 3000 11.1 28000 HCR0825
Diameter : M8
length : 18,0
G : 0.5-2.5
K : 12.0
Shear : 3000
ØDrill : 11.1
Tensile : 28000
M10 22,0 0.5-4.0 14.0 3500 13.1 40000 HCR1040
Diameter : M10
length : 22,0
G : 0.5-4.0
K : 14.0
Shear : 3500
ØDrill : 13.1
Tensile : 40000
