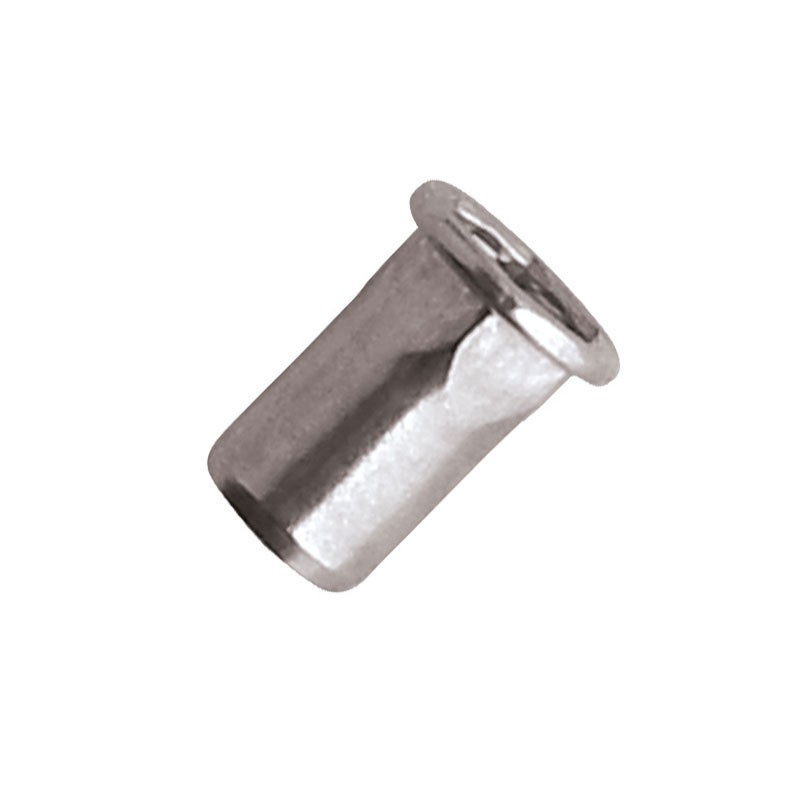

blind rivet nut - Hexagon body - stainless steel A2 - cylindrical head

blind rivet nut - Hexagon body - stainless steel A2 - cylindrical head

Download PDF file

Dimensions

Technical data

Diameter length Shear ØDrill Tensile G K Référence
Diamètre Ø perçage
mm
M4 12,5 2600 6.1 10000 0.5-2.5 9.3 HND0425
Diameter : M4
length : 12,5
Shear : 2600
ØDrill : 6.1
Tensile : 10000
G : 0.5-2.5
K : 9.3
M5 14,5 3400 7.1 12000 0.5-3.0 10.3 HND0530
Diameter : M5
length : 14,5
Shear : 3400
ØDrill : 7.1
Tensile : 12000
G : 0.5-3.0
K : 10.3
M6 17,0 4700 9.1 19000 0.5-3.0 12.3 HND0630
Diameter : M6
length : 17,0
Shear : 4700
ØDrill : 9.1
Tensile : 19000
G : 0.5-3.0
K : 12.3
M8 19,0 6800 11.1 37000 0.5-3.0 14.3 HND0830
Diameter : M8
length : 19,0
Shear : 6800
ØDrill : 11.1
Tensile : 37000
G : 0.5-3.0
K : 14.3
