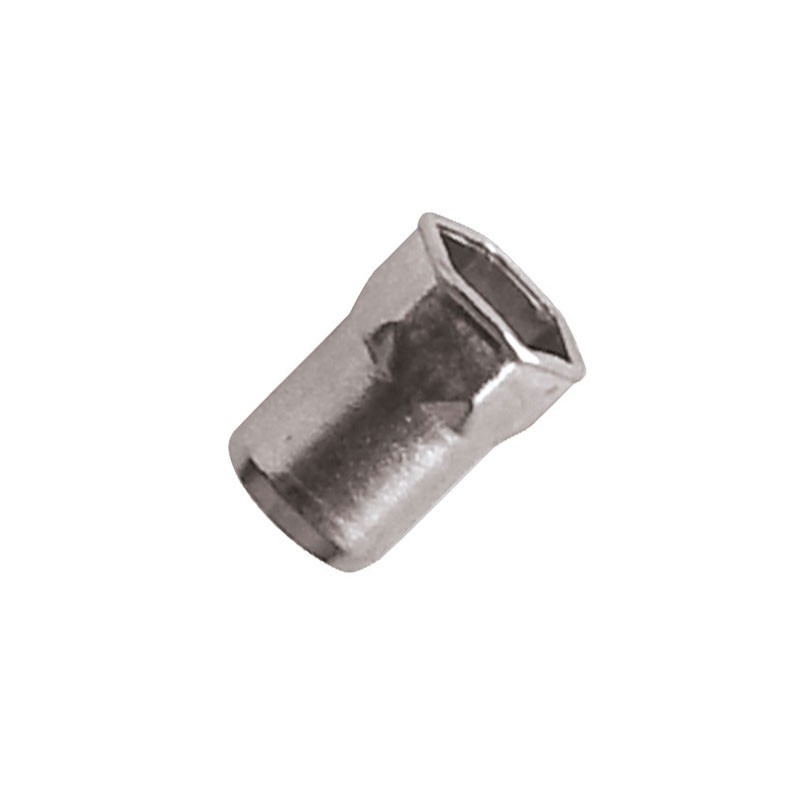

blind rivet nut - Hexagon body - stainless steel A2 - reduced head 90°

Download PDF file

Dimensions

Technical data

Diameter length Shear ØDrill Tensile G K Référence
Diamètre Ø perçage
mm
M4 12,0 2900 6.1 8200 0.5-2.5 6.5 HNR0425
Diameter : M4
length : 12,0
Shear : 2900
ØDrill : 6.1
Tensile : 8200
G : 0.5-2.5
K : 6.5
M5 14,0 3100 7.1 11700 0.5-3.0 7.9 HNR0530
Diameter : M5
length : 14,0
Shear : 3100
ØDrill : 7.1
Tensile : 11700
G : 0.5-3.0
K : 7.9
M6 16,0 3800 9.1 21500 0.5-3.0 9.5 HNR0630
Diameter : M6
length : 16,0
Shear : 3800
ØDrill : 9.1
Tensile : 21500
G : 0.5-3.0
K : 9.5
M8 17,0 3900 11.1 24000 0.5-3.0 11.5 HNR0830
Diameter : M8
length : 17,0
Shear : 3900
ØDrill : 11.1
Tensile : 24000
G : 0.5-3.0
K : 11.5
M10 20,5 5000 13.1 47000 1.0-4.0 14.0 HNR1040
Diameter : M10
length : 20,5
Shear : 5000
ØDrill : 13.1
Tensile : 47000
G : 1.0-4.0
K : 14.0
