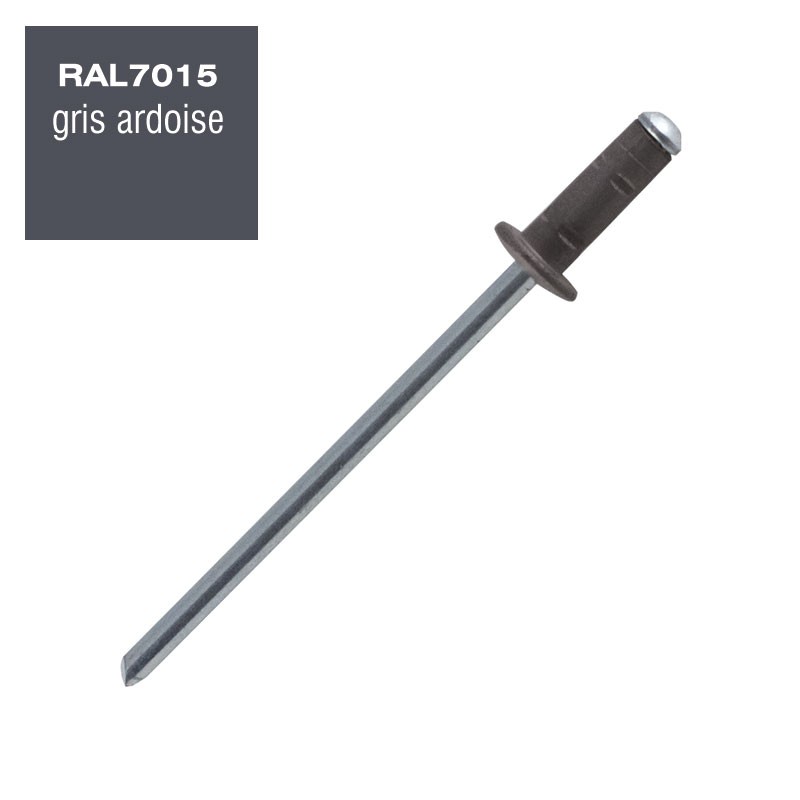

Rivet tête plate - Laqué - Aluminium/Acier

Download PDF file

Dimensions

Technical data

Diameter length G K Shear ØDrill Tensile Référence
Diamètre Ø perçage
mm
3.2 8.0 1.0-5.0 6.0 680 Ø3.3 980 UD3208-R7015
Diameter : 3.2
length : 8.0
G : 1.0-5.0
K : 6.0
Shear : 680
ØDrill : Ø3.3
Tensile : 980
4.0 9.5 1.5-6.5 8.0 680 Ø4.1 980 UD4010-R7015
Diameter : 4.0
length : 9.5
G : 1.5-6.5
K : 8.0
Shear : 680
ØDrill : Ø4.1
Tensile : 980
4.8 15.1 5.0-10.5 9.5 1500 Ø4.9 2350 UD4815-R7015
Diameter : 4.8
length : 15.1
G : 5.0-10.5
K : 9.5
Shear : 1500
ØDrill : Ø4.9
Tensile : 2350
