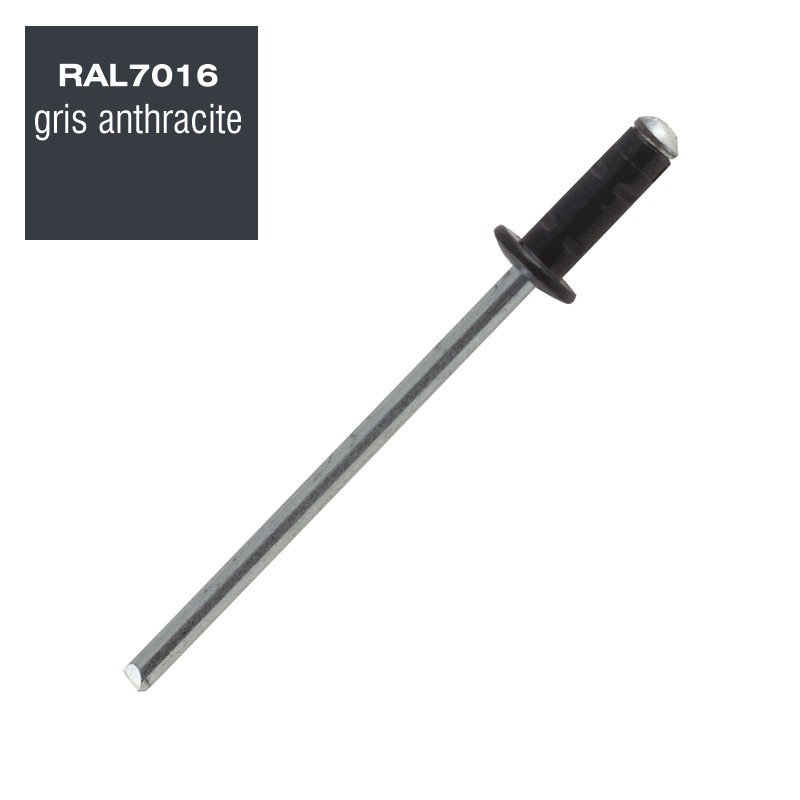

Rivet tête plate - Laqué - Aluminium/Acier

Download PDF file

Dimensions

Technical data

Diameter length ØDrill Shear Tensile G K Référence
Diamètre Ø perçage
mm
3.2 8.0 Ø3.3 680 980 1.0-5.0 6.0 UD3208-R7016
Diameter : 3.2
length : 8.0
ØDrill : Ø3.3
Shear : 680
Tensile : 980
G : 1.0-5.0
K : 6.0
4.0 9.5 Ø4.1 680 980 1.5-6.5 8.0 UD4010-R7016
Diameter : 4.0
length : 9.5
ØDrill : Ø4.1
Shear : 680
Tensile : 980
G : 1.5-6.5
K : 8.0
4.8 15.1 Ø4.9 1500 2350 5.0-10.5 9.5 UD4815-R7016
Diameter : 4.8
length : 15.1
ØDrill : Ø4.9
Shear : 1500
Tensile : 2350
G : 5.0-10.5
K : 9.5
