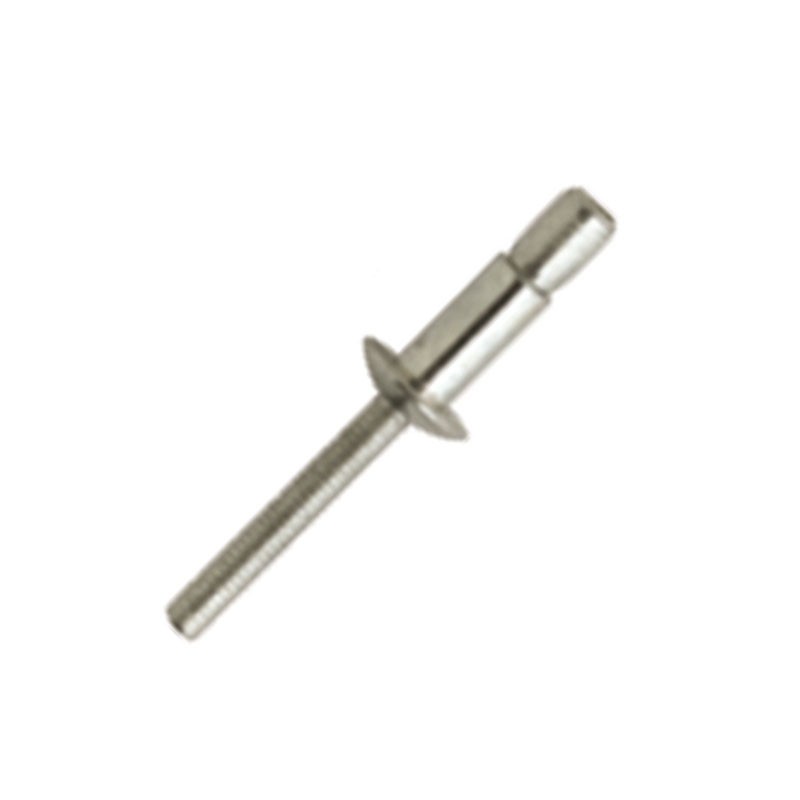

Rivet de structure superiv - aluminium/aluminium - tête fraisée

Download PDF file

Dimensions

Technical data

Diameter length Shear ØDrill Tensile G K Référence
Diamètre Ø perçage
mm
4.8 13.0 2400 Ø5.0 2000 3.20-8.40 8.80 SPHK48120
Diameter : 4.8
length : 13.0
Shear : 2400
ØDrill : Ø5.0
Tensile : 2000
G : 3.20-8.40
K : 8.80
4.8 17.0 2400 Ø5.0 2000 7.70-12.70 8.80 SPHK48160
Diameter : 4.8
length : 17.0
Shear : 2400
ØDrill : Ø5.0
Tensile : 2000
G : 7.70-12.70
K : 8.80
6.4 17.0 5600 Ø6.8 3600 4.10-12.10 10.60 SPHK64160
Diameter : 6.4
length : 17.0
Shear : 5600
ØDrill : Ø6.8
Tensile : 3600
G : 4.10-12.10
K : 10.60
