W4D

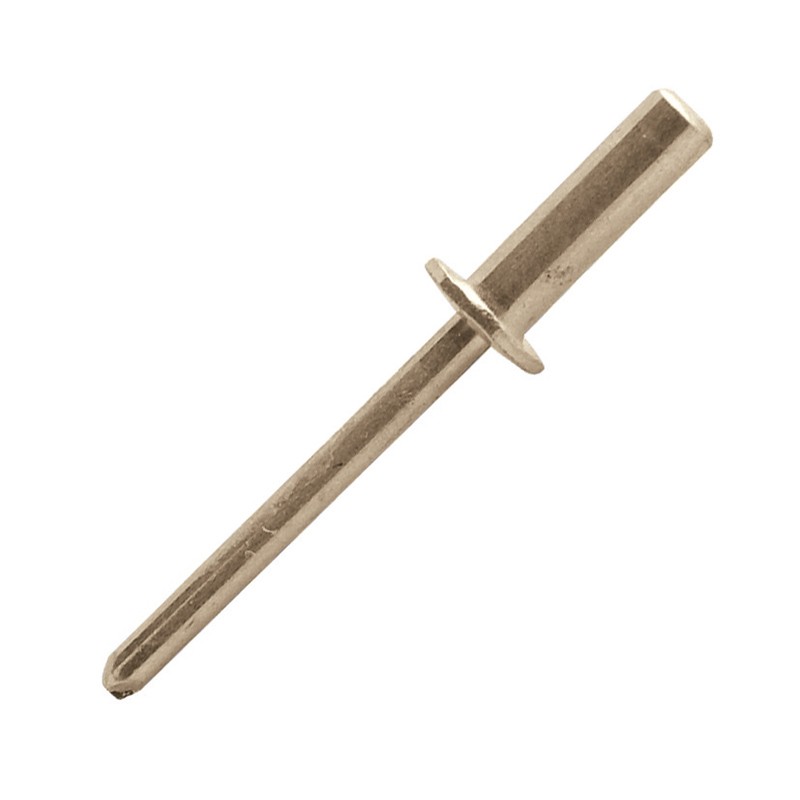

rivet-etanche-inox-a2-inox-a2-tete-plate
Dimensions
Technical data
| Diameter | length | G | K | Shear | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| 3.2 | 8.0 | 1.5-3.0 | 6.0 | 2000 | 3.3 | 2200 | W4D3208 | |
|
Diameter : 3.2 length : 8.0 G : 1.5-3.0 K : 6.0 Shear : 2000 ØDrill : 3.3 Tensile : 2200 |
||||||||
| 3.2 | 9.5 | 3.0-5.0 | 6.0 | 2000 | 3.3 | 2200 | W4D3209 | |
|
Diameter : 3.2 length : 9.5 G : 3.0-5.0 K : 6.0 Shear : 2000 ØDrill : 3.3 Tensile : 2200 |
||||||||
| 4.0 | 9.5 | 2.5-4.5 | 8.0 | 3000 | 4.1 | 3500 | W4D4009 | |
|
Diameter : 4.0 length : 9.5 G : 2.5-4.5 K : 8.0 Shear : 3000 ØDrill : 4.1 Tensile : 3500 |
||||||||
| 4.0 | 12.0 | 4.0-6.5 | 8.0 | 3000 | 4.1 | 3500 | W4D4012 | |
|
Diameter : 4.0 length : 12.0 G : 4.0-6.5 K : 8.0 Shear : 3000 ØDrill : 4.1 Tensile : 3500 |
||||||||
| 4.8 | 9.5 | 2.5-4.5 | 9.5 | 4000 | 4.9 | 4400 | W4D4809 | |
|
Diameter : 4.8 length : 9.5 G : 2.5-4.5 K : 9.5 Shear : 4000 ØDrill : 4.9 Tensile : 4400 |
||||||||
| 4.8 | 12.0 | 4.0-6.5 | 9.5 | 4000 | 4.9 | 4400 | W4D4812 | |
|
Diameter : 4.8 length : 12.0 G : 4.0-6.5 K : 9.5 Shear : 4000 ØDrill : 4.9 Tensile : 4400 |
||||||||
