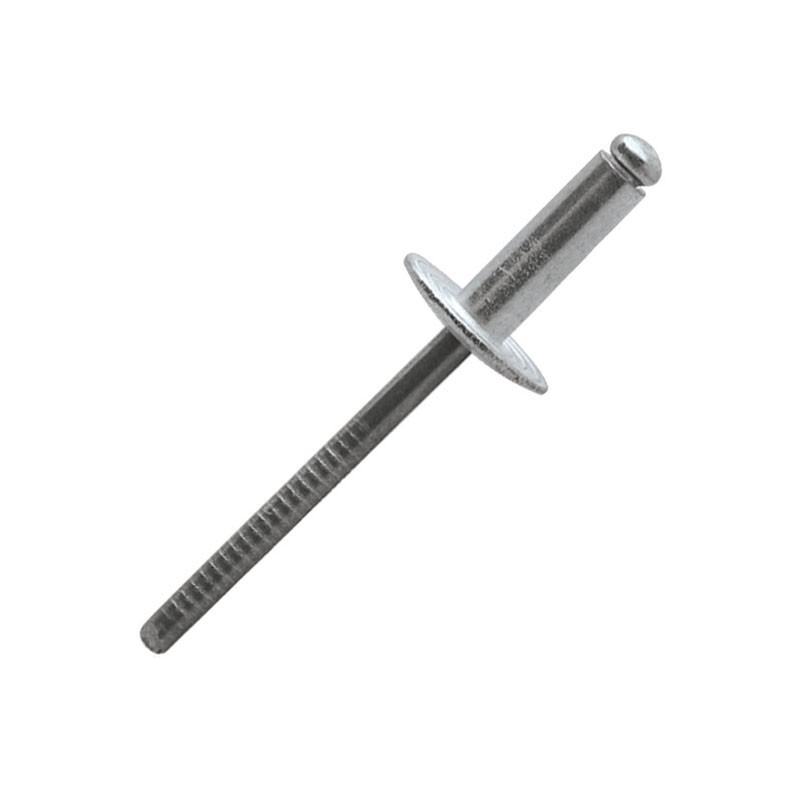

standard blind rivet - alu/stainless steel A2 - large head
Dimensions
Technical data
| Diameter | length | G | Shear | K | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| 4,8 | 10,0 | 4.5-6.5 | 1?850 | 11.0 | 4.9 | 2?600 | ANL4810-K11 | |
|
Diameter : 4,8 length : 10,0 G : 4.5-6.5 Shear : 1?850 K : 11.0 ØDrill : 4.9 Tensile : 2?600 |
||||||||
| 4,8 | 12,0 | 6.5-8.5 | 1?850 | 11.0 | 4.9 | 2?600 | ANL4812-K11 | |
|
Diameter : 4,8 length : 12,0 G : 6.5-8.5 Shear : 1?850 K : 11.0 ØDrill : 4.9 Tensile : 2?600 |
||||||||
| 4,8 | 12,0 | 6.5-8.5 | 1?850 | 14.0 | 4.9 | 2?600 | ANL4812-K14 | |
|
Diameter : 4,8 length : 12,0 G : 6.5-8.5 Shear : 1?850 K : 14.0 ØDrill : 4.9 Tensile : 2?600 |
||||||||
| 4,8 | 12,0 | 6.0-8.0 | 2?200 | 11.0 | 4.9 | 2?960 | ANL5012-K11 | |
|
Diameter : 4,8 length : 12,0 G : 6.0-8.0 Shear : 2?200 K : 11.0 ØDrill : 4.9 Tensile : 2?960 |
||||||||
| 4,8 | 16,0 | 10.5-12.5 | 1?850 | 11.0 | 4.9 | 2?600 | ANL4816-K11 | |
|
Diameter : 4,8 length : 16,0 G : 10.5-12.5 Shear : 1?850 K : 11.0 ØDrill : 4.9 Tensile : 2?600 |
||||||||
| 4,8 | 16,0 | 10.5-12.5 | 1?850 | 14.0 | 4.9 | 2?600 | ANL4816-K14 | |
|
Diameter : 4,8 length : 16,0 G : 10.5-12.5 Shear : 1?850 K : 14.0 ØDrill : 4.9 Tensile : 2?600 |
||||||||
| 5,0 | 12,0 | 6.0-8.0 | 2?200 | 14.0 | 5.1 | 2?960 | ANL5012-K14 | |
|
Diameter : 5,0 length : 12,0 G : 6.0-8.0 Shear : 2?200 K : 14.0 ØDrill : 5.1 Tensile : 2?960 |
||||||||
| 5,0 | 16,0 | 10.5-12.5 | 2?200 | 11.0 | 5.1 | 2?960 | ANL5016-K11 | |
|
Diameter : 5,0 length : 16,0 G : 10.5-12.5 Shear : 2?200 K : 11.0 ØDrill : 5.1 Tensile : 2?960 |
||||||||
