PAD

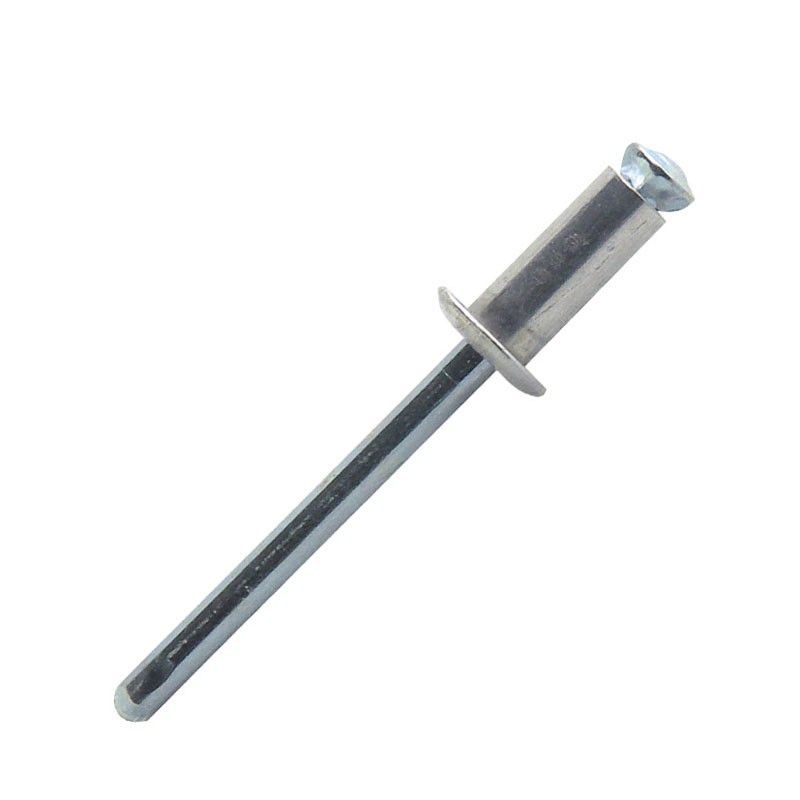

padrivet-eclate-alu-alu-tete-plate
Dimensions
Technical data
| Diameter | length | G | Shear | K | ØDrill | Tensile | Référence | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||||||||||
| 4,0 | 10,0 | 1.5-5.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4010 | |||||||||
|
Diameter : 4,0 length : 10,0 G : 1.5-5.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 12,0 | 4.0-6.5 | 1260 | 8.0 | 4.2 | 1150 | PAD4012 | |||||||||
|
Diameter : 4,0 length : 12,0 G : 4.0-6.5 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 14,0 | 6.0-9.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4014 | |||||||||
|
Diameter : 4,0 length : 14,0 G : 6.0-9.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 16,0 | 8.0-11.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4016 | |||||||||
|
Diameter : 4,0 length : 16,0 G : 8.0-11.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 18,0 | 10.0-13.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4018 | |||||||||
|
Diameter : 4,0 length : 18,0 G : 10.0-13.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 20,0 | 12.0-15.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4020 | |||||||||
|
Diameter : 4,0 length : 20,0 G : 12.0-15.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,0 | 25,0 | 15.0-20.0 | 1260 | 8.0 | 4.2 | 1150 | PAD4025 | |||||||||
|
Diameter : 4,0 length : 25,0 G : 15.0-20.0 Shear : 1260 K : 8.0 ØDrill : 4.2 Tensile : 1150 |
||||||||||||||||
| 4,8 | 10,0 | 0.5-4.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4810 | |||||||||
|
Diameter : 4,8 length : 10,0 G : 0.5-4.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 12,0 | 2.0-6.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4812 | |||||||||
|
Diameter : 4,8 length : 12,0 G : 2.0-6.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 14,0 | 4.0-8.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4814 | |||||||||
|
Diameter : 4,8 length : 14,0 G : 4.0-8.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 16,0 | 6.0-10.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4816 | |||||||||
|
Diameter : 4,8 length : 16,0 G : 6.0-10.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 18,0 | 8.0-12.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4818 | |||||||||
|
Diameter : 4,8 length : 18,0 G : 8.0-12.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 20,0 | 10.0-14.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4820 | |||||||||
|
Diameter : 4,8 length : 20,0 G : 10.0-14.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 25,0 | 16.0-19.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4825 | |||||||||
|
Diameter : 4,8 length : 25,0 G : 16.0-19.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 30,0 | 19.0-24.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4830 | |||||||||
|
Diameter : 4,8 length : 30,0 G : 19.0-24.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 35,0 | 24.0-29.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4835 | |||||||||
|
Diameter : 4,8 length : 35,0 G : 24.0-29.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
| 4,8 | 40,0 | 29.0-34.0 | 1855 | 9.5 | 5.2 | 1600 | PAD4840 | |||||||||
|
Diameter : 4,8 length : 40,0 G : 29.0-34.0 Shear : 1855 K : 9.5 ØDrill : 5.2 Tensile : 1600 |
||||||||||||||||
