Scell-it
DNX

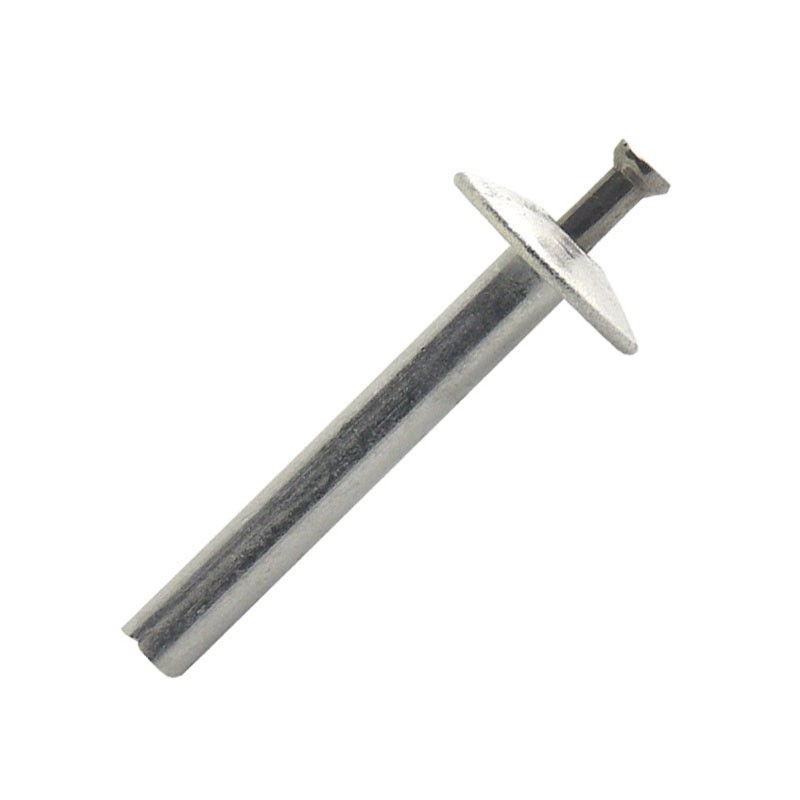

dnxrivet-expanse-a-frapper-alu-inox-a2-tete-large
Dimensions
Technical data
| Diameter | length | G | Shear | K | ØDrill | Tensile | Référence | |
|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
|||||||
| 4.8 | 25.0 | 18.7-21.2 | 3400 | 15.0 | 4.9 | 2000 | DNX4825 | |
|
Diameter : 4.8 length : 25.0 G : 18.7-21.2 Shear : 3400 K : 15.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
| 4.8 | 16.0 | 9.7-12.2 | 3400 | 15.0 | 4.9 | 2000 | DNX4816 | |
|
Diameter : 4.8 length : 16.0 G : 9.7-12.2 Shear : 3400 K : 15.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
| 4.8 | 20.0 | 13.7-16.2 | 3400 | 15.0 | 4.9 | 2000 | DNX4820 | |
|
Diameter : 4.8 length : 20.0 G : 13.7-16.2 Shear : 3400 K : 15.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
| 4.8 | 30.0 | 23.7-26.2 | 3400 | 15.0 | 4.9 | 2000 | DNX4830 | |
|
Diameter : 4.8 length : 30.0 G : 23.7-26.2 Shear : 3400 K : 15.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
| 4.8 | 35.0 | 30.5-32.0 | 3400 | 16.0 | 4.9 | 2000 | DNX4835 | |
|
Diameter : 4.8 length : 35.0 G : 30.5-32.0 Shear : 3400 K : 16.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
| 4.8 | 40.0 | 35.5-37.0 | 3400 | 16.0 | 4.9 | 2000 | DNX4840 | |
|
Diameter : 4.8 length : 40.0 G : 35.5-37.0 Shear : 3400 K : 16.0 ØDrill : 4.9 Tensile : 2000 |
||||||||
