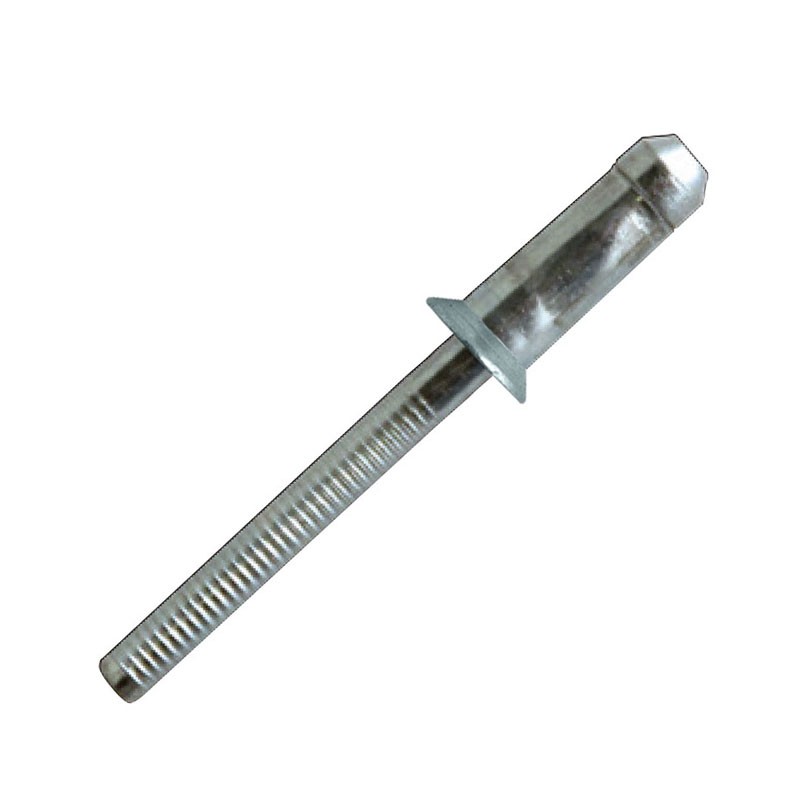

structural rivet hyperiv - steel/steel - countersunk head 120°

structural rivet hyperiv - steel/steel - countersunk head 120°

Download PDF file

Dimensions

Technical data

Diameter length G K Shear ØDrill Tensile Référence
Diamètre Ø perçage
mm
4.8 20.0 11.0-13.0 8.5 3600 5.0 3300 HPSK48200
Diameter : 4.8
length : 20.0
G : 11.0-13.0
K : 8.5
Shear : 3600
ØDrill : 5.0
Tensile : 3300
6.4 11.0 3.8-5.8 10.0 10500 6.8 8000 HPSK64110
Diameter : 6.4
length : 11.0
G : 3.8-5.8
K : 10.0
Shear : 10500
ØDrill : 6.8
Tensile : 8000
6.4 13.0 5.8-7.8 10.0 10500 6.8 8000 HPSK64130
Diameter : 6.4
length : 13.0
G : 5.8-7.8
K : 10.0
Shear : 10500
ØDrill : 6.8
Tensile : 8000
6.4 15.0 7.8-9.8 10.0 10500 6.8 8000 HPSK64150
Diameter : 6.4
length : 15.0
G : 7.8-9.8
K : 10.0
Shear : 10500
ØDrill : 6.8
Tensile : 8000
6.4 17.0 9.8-11.8 10.0 10500 6.8 8000 HPSK64170
Diameter : 6.4
length : 17.0
G : 9.8-11.8
K : 10.0
Shear : 10500
ØDrill : 6.8
Tensile : 8000
6.4 19.0 11.8-13.8 10.0 10500 6.8 8000 HPSK64190
Diameter : 6.4
length : 19.0
G : 11.8-13.8
K : 10.0
Shear : 10500
ØDrill : 6.8
Tensile : 8000
