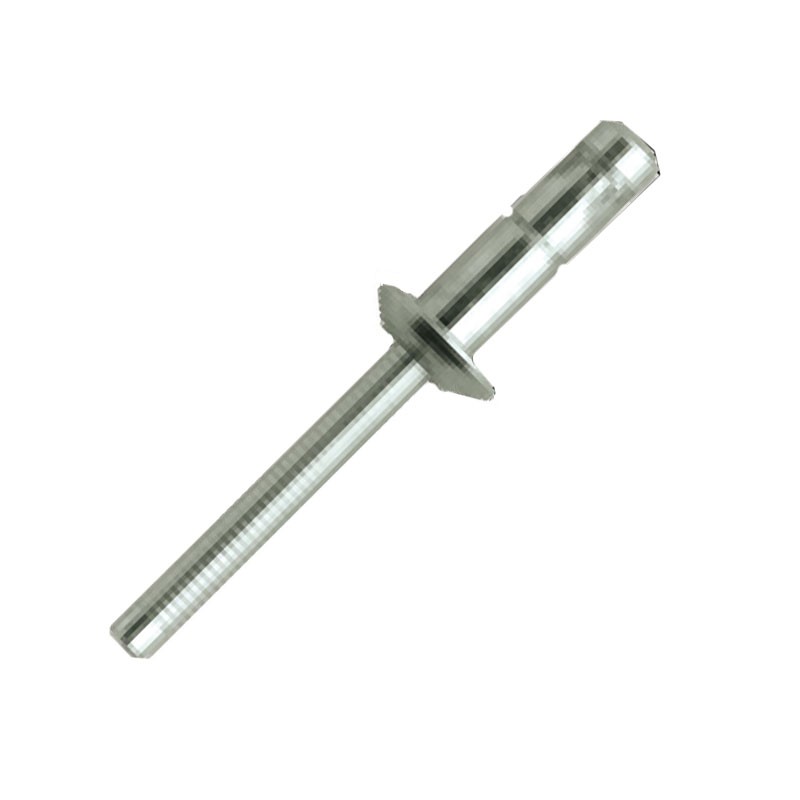

structural rivet hyperiv - alu/alu - dome head

structural rivet hyperiv - alu/alu - dome head

Download PDF file

Dimensions

Technical data

Diameter length G Shear K ØDrill Tensile Référence
Diamètre Ø perçage
mm
6.4 10.5 2.8-4.8 5000 13.4 6.8 3000 HPHD64100
Diameter : 6.4
length : 10.5
G : 2.8-4.8
Shear : 5000
K : 13.4
ØDrill : 6.8
Tensile : 3000
6.4 12.5 4.8-6.8 5000 13.4 6.8 3000 HPHD64120
Diameter : 6.4
length : 12.5
G : 4.8-6.8
Shear : 5000
K : 13.4
ØDrill : 6.8
Tensile : 3000
6.4 14.5 6.8-8.8 5000 13.4 6.8 3000 HPHD64140
Diameter : 6.4
length : 14.5
G : 6.8-8.8
Shear : 5000
K : 13.4
ØDrill : 6.8
Tensile : 3000
6.4 8.8-10.8 5000 13.4 6.8 3000 HPHD64160
Diameter : 6.4
length :
G : 8.8-10.8
Shear : 5000
K : 13.4
ØDrill : 6.8
Tensile : 3000
6.4 10.8-12.8 5000 13.4 6.8 3000 HPHD64180
Diameter : 6.4
length :
G : 10.8-12.8
Shear : 5000
K : 13.4
ØDrill : 6.8
Tensile : 3000
