Scell-it
HBSD
hbsdgoujon-bague-hyperbolt-acier-tete-plate

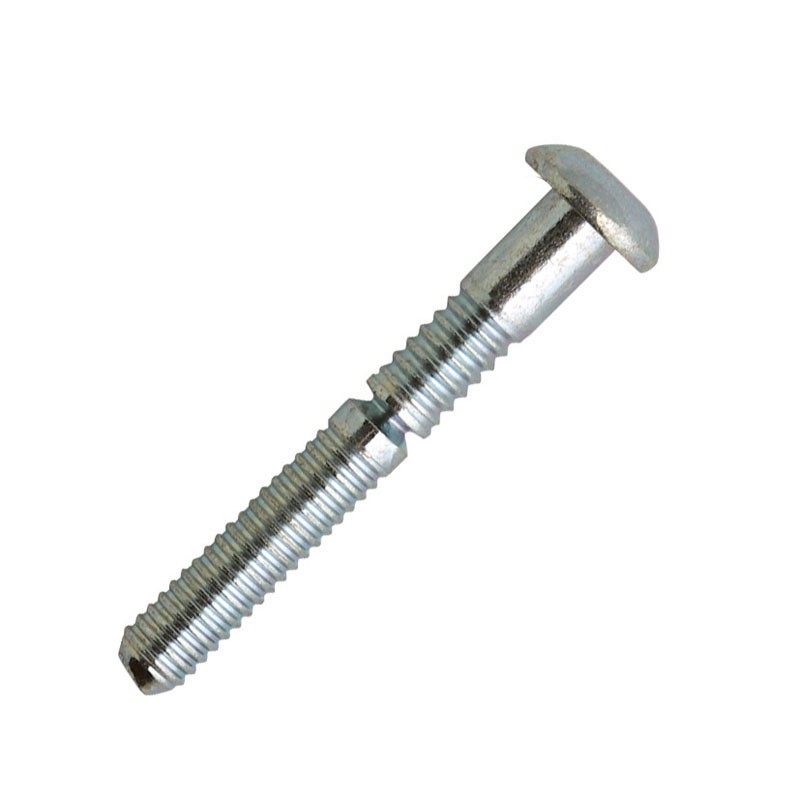

pin and collar hyperbolt - steel - dome head
Dimensions
Technical data
| Diameter | Length | G | K | Shear | ØDrill | Tensile | Référence | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | Longueur mm |
Ø perçage mm |
||||||||||
| 6.4 | 41.78 | 1.6-4.8 | 13.3 | 13830 | Ø7.1 | 11560 | HBSD0802 | |||||
|
Diameter : 6.4 Length : 41.78 G : 1.6-4.8 K : 13.3 Shear : 13830 ØDrill : Ø7.1 Tensile : 11560 |
||||||||||||
| 6.4 | 44.96 | 4.8-7.9 | 13.3 | 13830 | Ø7.1 | 11560 | HBSD0804 | |||||
|
Diameter : 6.4 Length : 44.96 G : 4.8-7.9 K : 13.3 Shear : 13830 ØDrill : Ø7.1 Tensile : 11560 |
||||||||||||
| 6.4 | 48.13 | 7.9-11.1 | 13.3 | 13830 | Ø7.1 | 11560 | HBSD0806 | |||||
|
Diameter : 6.4 Length : 48.13 G : 7.9-11.1 K : 13.3 Shear : 13830 ØDrill : Ø7.1 Tensile : 11560 |
||||||||||||
| 6.4 | 51.31 | 11.1-14.3 | 13.3 | 13830 | Ø7.1 | 11560 | HBSD0808 | |||||
|
Diameter : 6.4 Length : 51.31 G : 11.1-14.3 K : 13.3 Shear : 13830 ØDrill : Ø7.1 Tensile : 11560 |
||||||||||||
| 6.4 | 54.48 | 14.3-17.5 | 13.3 | 13830 | Ø7.1 | 11560 | HBSD0810 | |||||
|
Diameter : 6.4 Length : 54.48 G : 14.3-17.5 K : 13.3 Shear : 13830 ØDrill : Ø7.1 Tensile : 11560 |
||||||||||||
| 6.4 | BAGUE | HBSD-08 | ||||||||||
|
Diameter : 6.4 Length : BAGUE G : K : Shear : ØDrill : Tensile : |
||||||||||||
| 8.0 | 54.86 | 6.4-12.7 | 16.7 | 21430 | Ø9.1 | 17730 | HBSD1006 | |||||
|
Diameter : 8.0 Length : 54.86 G : 6.4-12.7 K : 16.7 Shear : 21430 ØDrill : Ø9.1 Tensile : 17730 |
||||||||||||
| 8.0 | 61.21 | 12.7-19.0 | 16.7 | 21430 | Ø9.1 | 17730 | HBSD1010 | |||||
|
Diameter : 8.0 Length : 61.21 G : 12.7-19.0 K : 16.7 Shear : 21430 ØDrill : Ø9.1 Tensile : 17730 |
||||||||||||
| 8.0 | BAGUE | HBSD-10 | ||||||||||
|
Diameter : 8.0 Length : BAGUE G : K : Shear : ØDrill : Tensile : |
||||||||||||
| 9.6 | 57.05 | 3.2-9.5 | 19.9 | 30960 | Ø10.7 | 25510 | HBSD1204 | |||||
|
Diameter : 9.6 Length : 57.05 G : 3.2-9.5 K : 19.9 Shear : 30960 ØDrill : Ø10.7 Tensile : 25510 |
||||||||||||
| 9.6 | 60.22 | 6.4-12.7 | 19.9 | 30960 | Ø10.7 | 25510 | HBSD1206 | |||||
|
Diameter : 9.6 Length : 60.22 G : 6.4-12.7 K : 19.9 Shear : 30960 ØDrill : Ø10.7 Tensile : 25510 |
||||||||||||
| 9.6 | 66.57 | 12.7-19.0 | 19.9 | 30960 | Ø10.7 | 25510 | HBSD1210 | |||||
|
Diameter : 9.6 Length : 66.57 G : 12.7-19.0 K : 19.9 Shear : 30960 ØDrill : Ø10.7 Tensile : 25510 |
||||||||||||
| 9.6 | BAGUE | HBSD-12 | ||||||||||
|
Diameter : 9.6 Length : BAGUE G : K : Shear : ØDrill : Tensile : |
||||||||||||
