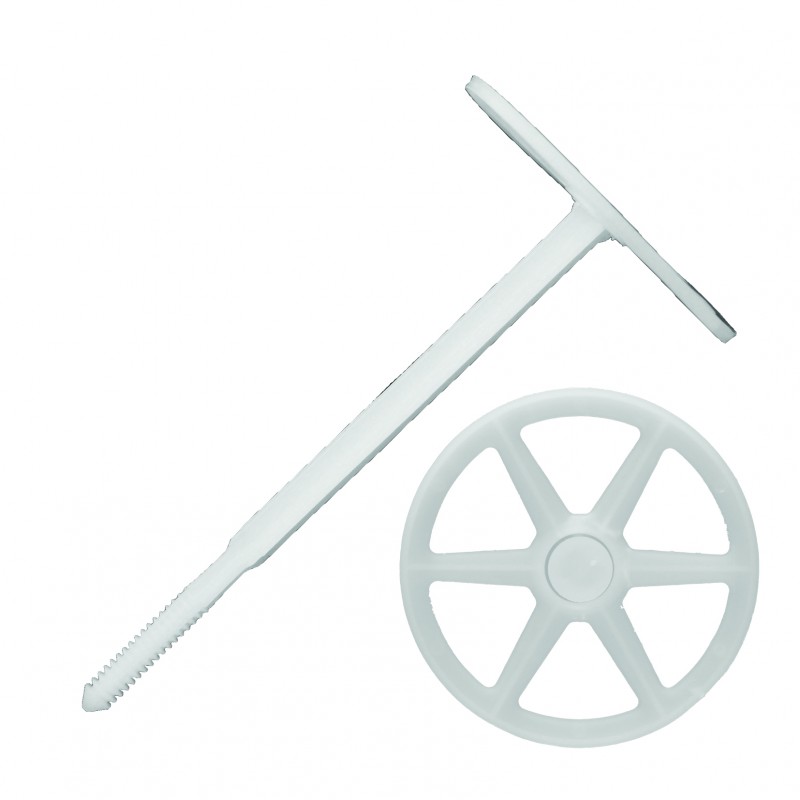

for fixing flexible insulation under cladding

For fixing flexible insulation which is protected by cladding.

Download PDF file

Dimensions

Technical data

Length tfix ØDrill h1 WASHER C Hef Référence
Longueur
mm
épaisseur à fixer
mm
Ø perçage
mm
Prof perçage
mm
80 55 8 35 90 25 FI08080
Length : 80
tfix : 55
ØDrill : 8
h1 : 35
WASHER : 90
C :
Hef : 25
75 8 35 90 25 FI08100
Length :
tfix : 75
ØDrill : 8
h1 : 35
WASHER : 90
C :
Hef : 25
95 8 35 90 25 FI08120
Length :
tfix : 95
ØDrill : 8
h1 : 35
WASHER : 90
C :
Hef : 25
115 8 35 90 25 FI08140
Length :
tfix : 115
ØDrill : 8
h1 : 35
WASHER : 90
C :
Hef : 25
135 8 35 90 25 FI08160
Length :
tfix : 135
ØDrill : 8
h1 : 35
WASHER : 90
C :
Hef : 25
150 8 40 90 30 FI08180*
Length :
tfix : 150
ØDrill : 8
h1 : 40
WASHER : 90
C :
Hef : 30
170 8 40 90 30 FI08200*
Length :
tfix : 170
ØDrill : 8
h1 : 40
WASHER : 90
C :
Hef : 30
190 8 40 90 30 FI08220*
Length :
tfix : 190
ØDrill : 8
h1 : 40
WASHER : 90
C :
Hef : 30
210 8 40 90 30 FI08240*
Length :
tfix : 210
ØDrill : 8
h1 : 40
WASHER : 90
C :
Hef : 30
