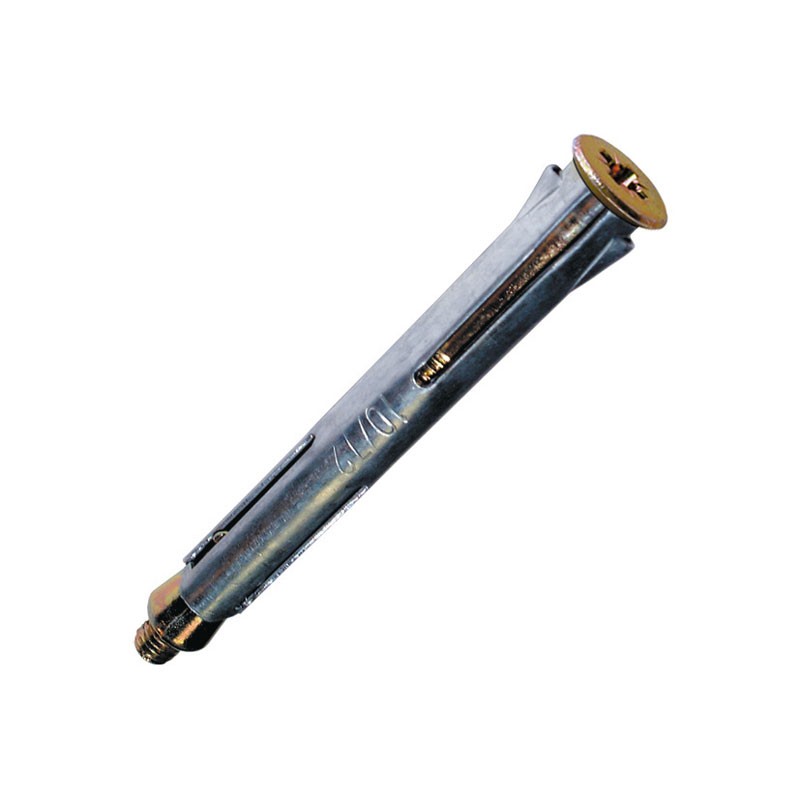

Metal frame anchor

Metal frame anchor

Practical

Metal frame anchor

Aesthetics

Covering cap for a beautiful finish (sold separately).

Secure

Expansion cone which remains inside the fixing.

Download PDF file

Dimensions

Technical data

Diameter length h1 ØDrill tfix Lp Référence
Diamètre Prof perçage
mm		 Ø perçage
mm		 épaisseur à fixer
mm
10 72 70 10 20 90 MR10072
Diameter : 10
length : 72
h1 : 70
ØDrill : 10
tfix : 20
Lp : 90
10 92 70 10 40 110 MR10092
Diameter : 10
length : 92
h1 : 70
ØDrill : 10
tfix : 40
Lp : 110
10 112 70 10 60 130 MR10112
Diameter : 10
length : 112
h1 : 70
ØDrill : 10
tfix : 60
Lp : 130
10 132 70 10 80 150 MR10132
Diameter : 10
length : 132
h1 : 70
ØDrill : 10
tfix : 80
Lp : 150
10 152 70 10 100 170 MR10152
Diameter : 10
length : 152
h1 : 70
ØDrill : 10
tfix : 100
Lp : 170
10 182 70 10 130 200 MR10182
Diameter : 10
length : 182
h1 : 70
ØDrill : 10
tfix : 130
Lp : 200
10 200 70 10 150 220 MR10200
Diameter : 10
length : 200
h1 : 70
ØDrill : 10
tfix : 150
Lp : 220
