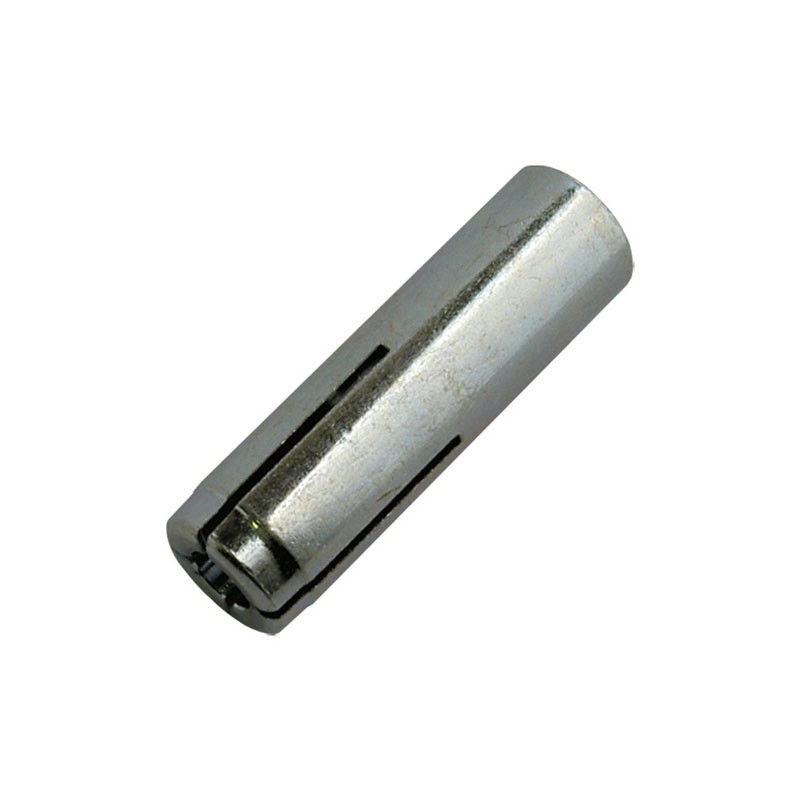

Drop in anchor- ETA Option 1

Call 01785 246539 now for next day delivery.

Download PDF file

Dimensions

Technical data

Diameter length h1 ØDrill emin Référence
Diamètre Prof perçage
mm
Ø perçage
mm
M6 25 26 8 8 SAPLUS06
Diameter : M6
length : 25
h1 : 26
ØDrill : 8
emin : 8
M8 30 32 10 8 SAPLUS08
Diameter : M8
length : 30
h1 : 32
ØDrill : 10
emin : 8
M10 40 42 12 10 SAPLUS10
Diameter : M10
length : 40
h1 : 42
ØDrill : 12
emin : 10
M12 50 53 16 12 SAPLUS12
Diameter : M12
length : 50
h1 : 53
ØDrill : 16
emin : 12
M16 65 68 20 20 SAPLUS16
Diameter : M16
length : 65
h1 : 68
ØDrill : 20
emin : 20
M20 80 85 25 25 SAPLUS20
Diameter : M20
length : 80
h1 : 85
ØDrill : 25
emin : 25
