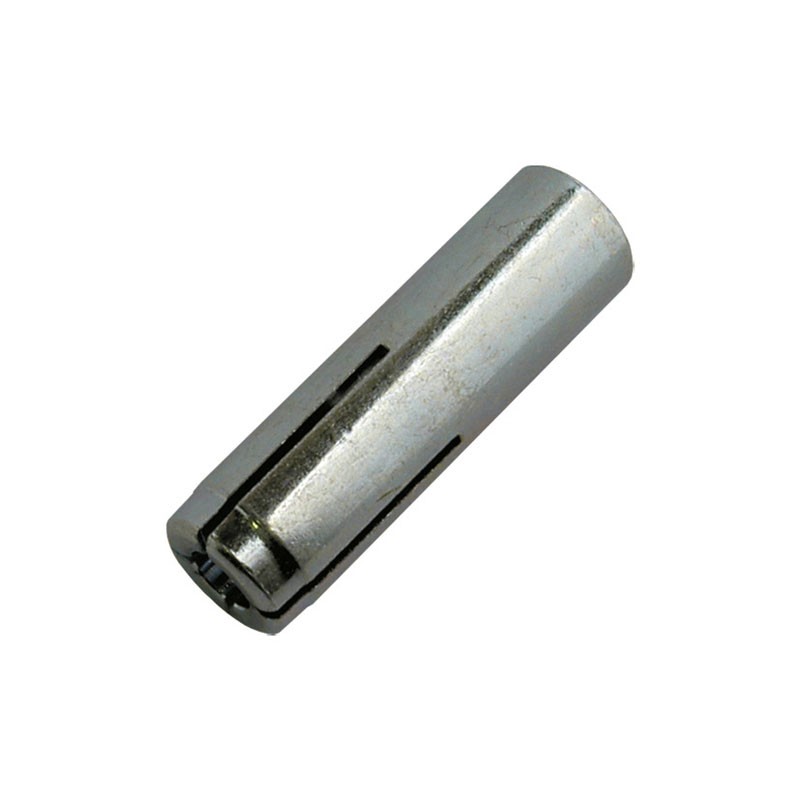

Drop in anchor- ETA Option 7 -A4 stainless steel

Download PDF file

Dimensions

Technical data

Diameter length h1 ØDrill emin Référence
Diamètre Prof perçage
mm
Ø perçage
mm
M6 25 26 8 8 A4-SAPLUS06
Diameter : M6
length : 25
h1 : 26
ØDrill : 8
emin : 8
M8 30 32 10 8 A4-SAPLUS08
Diameter : M8
length : 30
h1 : 32
ØDrill : 10
emin : 8
M10 40 42 12 10 A4-SAPLUS10
Diameter : M10
length : 40
h1 : 42
ØDrill : 12
emin : 10
M12 50 53 16 22 A4-SAPLUS12
Diameter : M12
length : 50
h1 : 53
ØDrill : 16
emin : 22
M16 65 68 20 32 A4-SAPLUS16
Diameter : M16
length : 65
h1 : 68
ØDrill : 20
emin : 32
