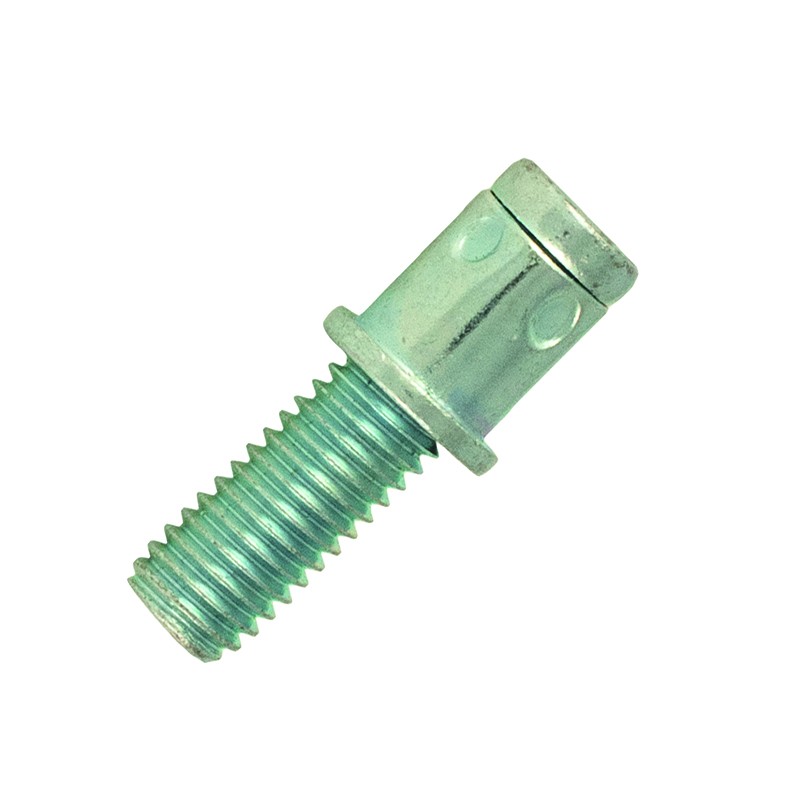

GOUJON À SERTIR - TÊTE PLATE - ACIER
Dimensions
Technical data
| Diameter | length | G | K | ØDrill | L1 | Tensile | Torque | Référence | |
|---|---|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
||||||||
| M4 | 8.5 | 0.5-2.0 | 8.0 | 5.5 | 15.0 | 4000 | 4.0 | GCD0420 | |
|
Diameter : M4 length : 8.5 G : 0.5-2.0 K : 8.0 ØDrill : 5.5 L1 : 15.0 Tensile : 4000 Torque : 4.0 |
|||||||||
| M4 | 2.0-3.0 | 8.0 | 5.5 | 15.0 | 4000 | 4.0 | GCD0430 | ||
|
Diameter : M4 length : G : 2.0-3.0 K : 8.0 ØDrill : 5.5 L1 : 15.0 Tensile : 4000 Torque : 4.0 |
|||||||||
| M5 | 0.5-2.0 | 9.0 | 6.6 | 15.0 | 7000 | 7.0 | GCD0520 | ||
|
Diameter : M5 length : G : 0.5-2.0 K : 9.0 ØDrill : 6.6 L1 : 15.0 Tensile : 7000 Torque : 7.0 |
|||||||||
| M5 | 2.0-4.8 | 9.0 | 6.6 | 15.0 | 7000 | 7.0 | GCD0538 | ||
|
Diameter : M5 length : G : 2.0-4.8 K : 9.0 ØDrill : 6.6 L1 : 15.0 Tensile : 7000 Torque : 7.0 |
|||||||||
| M6 | 0.5-2.5 | 10.0 | 7.8 | 15.0 | 10000 | 10.0 | GCD0625 | ||
|
Diameter : M6 length : G : 0.5-2.5 K : 10.0 ØDrill : 7.8 L1 : 15.0 Tensile : 10000 Torque : 10.0 |
|||||||||
| M6 | 2.5-4.0 | 10.0 | 7.8 | 15.0 | 10000 | 10.0 | GCD0640 | ||
|
Diameter : M6 length : G : 2.5-4.0 K : 10.0 ØDrill : 7.8 L1 : 15.0 Tensile : 10000 Torque : 10.0 |
|||||||||
| M8 | 1.0-3.0 | 12.0 | 9.9 | 20.0 | 28000 | 30.0 | GCD0830 | ||
|
Diameter : M8 length : G : 1.0-3.0 K : 12.0 ØDrill : 9.9 L1 : 20.0 Tensile : 28000 Torque : 30.0 |
|||||||||
| M8 | 3.0-5.0 | 12.0 | 9.9 | 20.0 | 28000 | 30.0 | GCD0850 | ||
|
Diameter : M8 length : G : 3.0-5.0 K : 12.0 ØDrill : 9.9 L1 : 20.0 Tensile : 28000 Torque : 30.0 |
|||||||||
