Scell-it
TFQ
tfqvis-tete-fraisee-120-acier-zingue-blanc

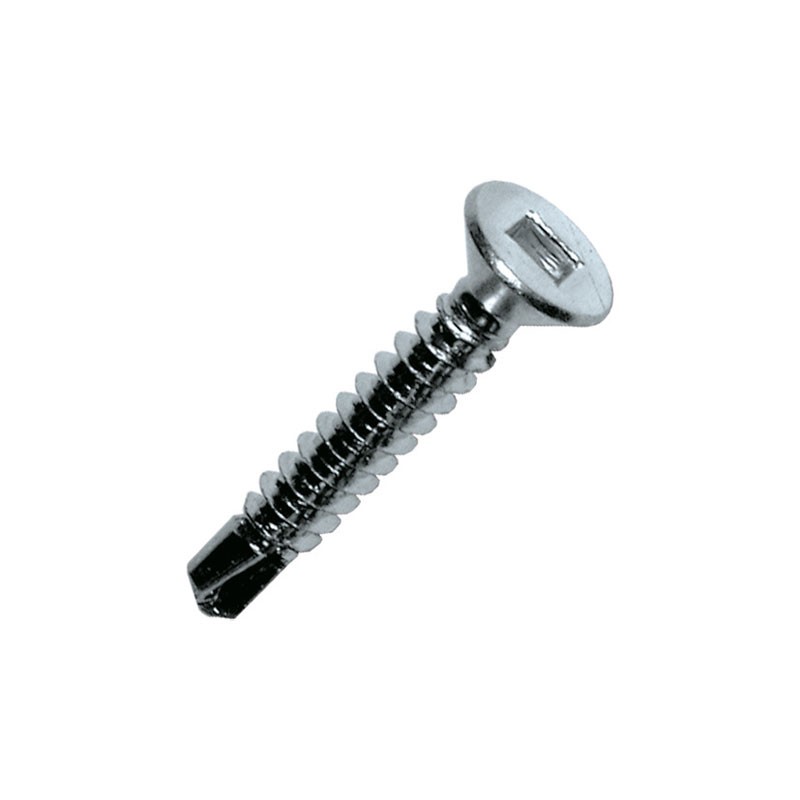

screw, 120° countersunk head, bright zinc-plated steel
Dimensions
Technical data
| Diameter | length | G | Shear | Tensile | Drill capacity for steel | wrench | maximum speed | Socket | Référence | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | |||||||||||||||||||||||
| 3.5 | 13 | 7 | 2930 | 5000 | 2.0 | 2800 | SQ1 | TFQ35013 | |||||||||||||||
|
Diameter : 3.5 length : 13 G : 7 Shear : 2930 Tensile : 5000 Drill capacity for steel : 2.0 wrench : 2800 maximum speed : Socket : SQ1 |
|||||||||||||||||||||||
| 3.5 | 16 | 10 | 2930 | 5000 | 2.0 | 2800 | SQ1 | TFQ35016 | |||||||||||||||
|
Diameter : 3.5 length : 16 G : 10 Shear : 2930 Tensile : 5000 Drill capacity for steel : 2.0 wrench : 2800 maximum speed : Socket : SQ1 |
|||||||||||||||||||||||
| 3.5 | 19 | 8 | 2930 | 5000 | 2.0 | 2800 | SQ1 | TFQ35019 | |||||||||||||||
|
Diameter : 3.5 length : 19 G : 8 Shear : 2930 Tensile : 5000 Drill capacity for steel : 2.0 wrench : 2800 maximum speed : Socket : SQ1 |
|||||||||||||||||||||||
| 3.9 | 13 | 7 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39013 | |||||||||||||||
|
Diameter : 3.9 length : 13 G : 7 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 3.9 | 16 | 10 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39016 | |||||||||||||||
|
Diameter : 3.9 length : 16 G : 10 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 3.9 | 19 | 8 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39019 | |||||||||||||||
|
Diameter : 3.9 length : 19 G : 8 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 3.9 | 25 | 19 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39025 | |||||||||||||||
|
Diameter : 3.9 length : 25 G : 19 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 3.9 | 32 | 26 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39032 | |||||||||||||||
|
Diameter : 3.9 length : 32 G : 26 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 3.9 | 38 | 32 | 3650 | 6000 | 2.5 | 3800 | SQ2 | TFQ39038 | |||||||||||||||
|
Diameter : 3.9 length : 38 G : 32 Shear : 3650 Tensile : 6000 Drill capacity for steel : 2.5 wrench : 3800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.2 | 16 | 9 | 4360 | 7000 | 3.0 | 4800 | SQ2 | TFQ42016 | |||||||||||||||
|
Diameter : 4.2 length : 16 G : 9 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.2 | 19 | 12 | 4360 | 7000 | 3.0 | 4800 | SQ2 | TFQ42019 | |||||||||||||||
|
Diameter : 4.2 length : 19 G : 12 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.2 | 25 | 18 | 4360 | 7000 | 3.0 | 4800 | SQ2 | TFQ42025 | |||||||||||||||
|
Diameter : 4.2 length : 25 G : 18 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.2 | 32 | 25 | 4360 | 7000 | 3.0 | 4800 | SQ2 | TFQ42032 | |||||||||||||||
|
Diameter : 4.2 length : 32 G : 25 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.2 | 38 | 31 | 4360 | 7000 | 3.0 | 4800 | SQ2 | TFQ42038 | |||||||||||||||
|
Diameter : 4.2 length : 38 G : 31 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 16 | 7 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48016 | ||||||||||||||
|
Diameter : 4.8 length : 16 G : 7 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 19 | 10 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48019 | ||||||||||||||
|
Diameter : 4.8 length : 19 G : 10 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 25 | 16 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48025 | ||||||||||||||
|
Diameter : 4.8 length : 25 G : 16 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 32 | 23 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48032 | ||||||||||||||
|
Diameter : 4.8 length : 32 G : 23 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 38 | 29 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48038 | ||||||||||||||
|
Diameter : 4.8 length : 38 G : 29 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 45 | 36 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48045 | ||||||||||||||
|
Diameter : 4.8 length : 45 G : 36 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 50 | 41 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48050 | ||||||||||||||
|
Diameter : 4.8 length : 50 G : 41 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 60 | 51 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48060 | ||||||||||||||
|
Diameter : 4.8 length : 60 G : 51 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 70 | 61 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48070 | ||||||||||||||
|
Diameter : 4.8 length : 70 G : 61 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
| 4.8 | 80 | 71 | 6280 | 10000 | 4.0 | 7000 | 2000 | SQ2 | TFQ48080 | ||||||||||||||
|
Diameter : 4.8 length : 80 G : 71 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : SQ2 |
|||||||||||||||||||||||
