Scell-it
TFAC
tfactfac-tete-fraisee-120-acier-zingue-blanc

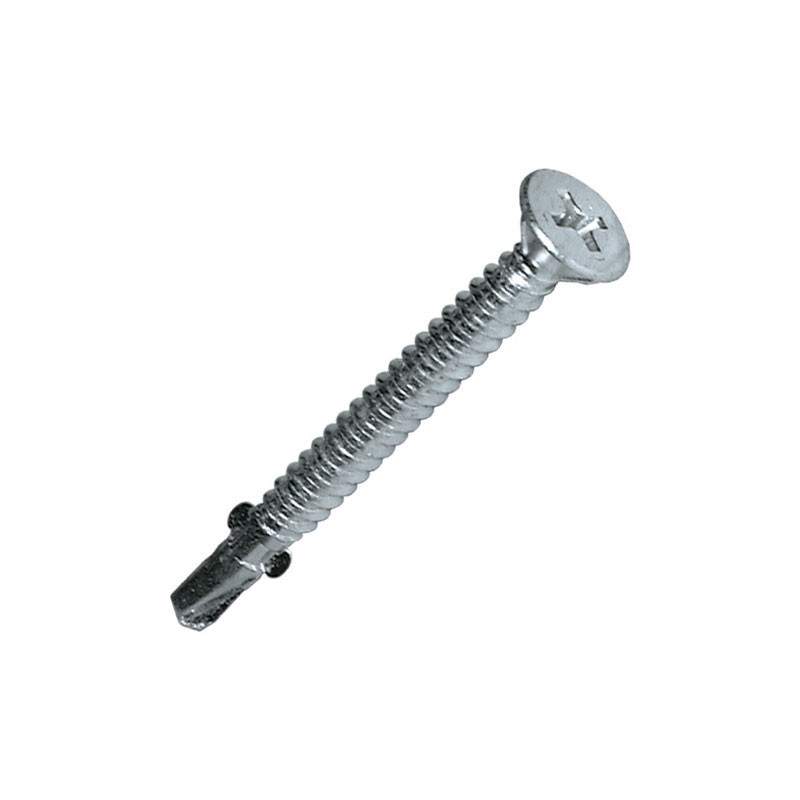

TFAC 120° countersunk head, bright zinc-plated steel
Dimensions
Technical data
| Diameter | length | G | Shear | Tensile | Drill capacity for steel | wrench | maximum speed | Socket | Référence | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | ||||||||||||
| 4.2 | 32 | 19 | 4360 | 7000 | 3.0 | 4800 | PH2 | TFAC42032 | ||||
|
Diameter : 4.2 length : 32 G : 19 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : PH2 |
||||||||||||
| 4.2 | 38 | 25 | 4360 | 7000 | 3.0 | 4800 | PH2 | TFAC42038 | ||||
|
Diameter : 4.2 length : 38 G : 25 Shear : 4360 Tensile : 7000 Drill capacity for steel : 3.0 wrench : 4800 maximum speed : Socket : PH2 |
||||||||||||
| 4.8 | 38 | 23 | 6280 | 10000 | 4.0 | 7000 | 2000 | PH2 | TFAC48038 | |||
|
Diameter : 4.8 length : 38 G : 23 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : PH2 |
||||||||||||
| 4.8 | 45 | 32 | 6280 | 10000 | 4.0 | 7000 | 2000 | PH2 | TFAC48045 | |||
|
Diameter : 4.8 length : 45 G : 32 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : PH2 |
||||||||||||
| 4.8 | 50 | 35 | 6280 | 10000 | 4.0 | 7000 | 2000 | PH2 | TFAC48050 | |||
|
Diameter : 4.8 length : 50 G : 35 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : PH2 |
||||||||||||
| 4.8 | 75 | 60 | 6280 | 10000 | 4.0 | 7000 | 2000 | PH2 | TFAC48075 | |||
|
Diameter : 4.8 length : 75 G : 60 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : PH2 |
||||||||||||
| 5.5 | 38 | 23 | 8360 | 12500 | 5.0 | 10500 | 1750 | PH3 | TFAC55038 | |||
|
Diameter : 5.5 length : 38 G : 23 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : PH3 |
||||||||||||
| 5.5 | 50 | 35 | 8360 | 12500 | 5.0 | 10500 | 1750 | PH3 | TFAC55050 | |||
|
Diameter : 5.5 length : 50 G : 35 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : PH3 |
||||||||||||
| 5.5 | 60 | 45 | 8360 | 12500 | 5.0 | 10500 | 1750 | PH3 | TFAC55060 | |||
|
Diameter : 5.5 length : 60 G : 45 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : PH3 |
||||||||||||
| 5.5 | 65 | 50 | 8360 | 12500 | 5.0 | 10500 | 1750 | PH3 | TFAC55065 | |||
|
Diameter : 5.5 length : 65 G : 50 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : PH3 |
||||||||||||
| 5.5 | 85 | 70 | 8360 | 12500 | 5.0 | 10500 | 1750 | PH3 | TFAC55085 | |||
|
Diameter : 5.5 length : 85 G : 70 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : PH3 |
||||||||||||
| 6.3 | 50 | 34 | 12270 | 17000 | 6.0 | 17000 | 1500 | PH3 | TFAC63050 | |||
|
Diameter : 6.3 length : 50 G : 34 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : PH3 |
||||||||||||
| 6.3 | 70 | 54 | 12270 | 17000 | 6.0 | 17000 | 1500 | PH3 | TFAC63070 | |||
|
Diameter : 6.3 length : 70 G : 54 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : PH3 |
||||||||||||
