FTD
ftdattache-de-dalle-by-apolo-double

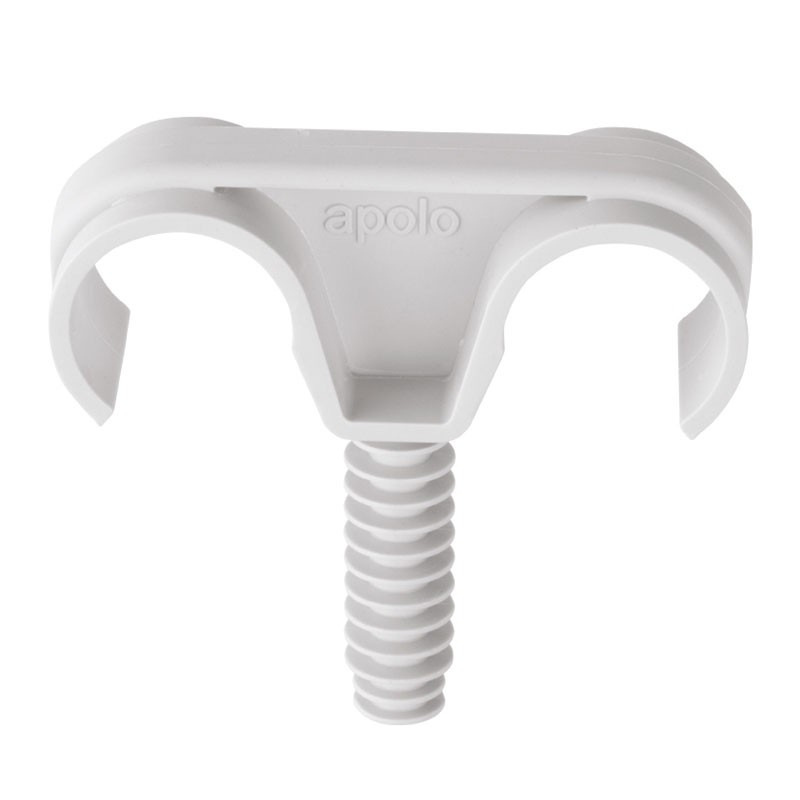

by apolo double slab-fastening
Ø16 to Ø28 for maintaining tubes and sheaths on the ground
installation by simply hammering
1 dimension covers 2 diameters
conical tip makes insertion easier
Dimensions
Technical data
| Diameter | Diameter pipes | ØDrill | pipe diameter | Référence | |
|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
||||
| 18 | 18 | 8 | 16 | FTD18 | |
|
Diameter : 18 Diameter pipes : 18 ØDrill : 8 pipe diameter : 16 |
|||||
| 22 | 22 | 8 | 20 | FTD22 | |
|
Diameter : 22 Diameter pipes : 22 ØDrill : 8 pipe diameter : 20 |
|||||
| 28 | 28 | 8 | 25 | FTD28 | |
|
Diameter : 28 Diameter pipes : 28 ØDrill : 8 pipe diameter : 25 |
|||||
