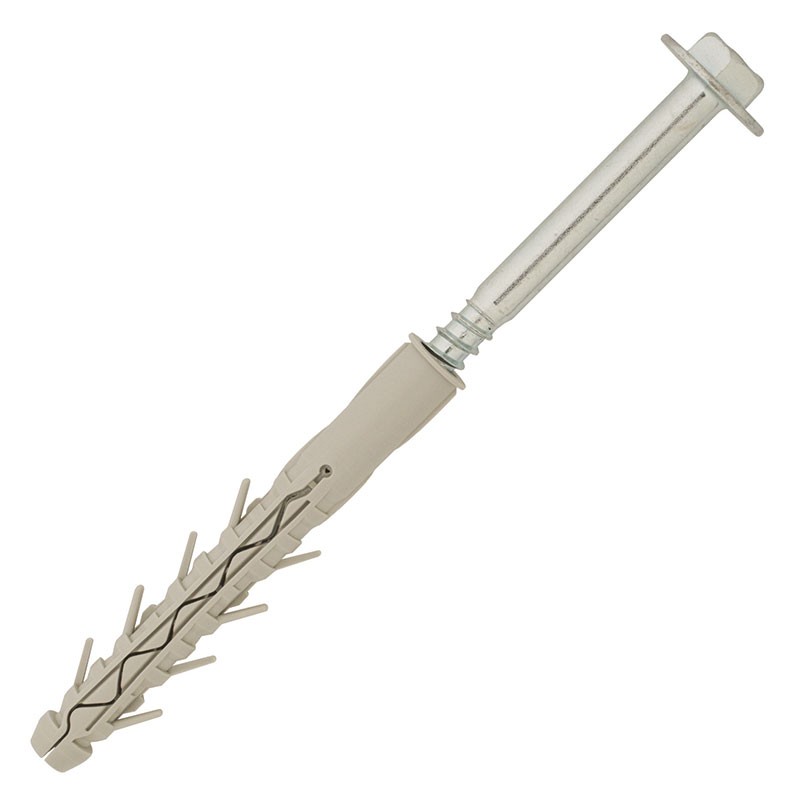

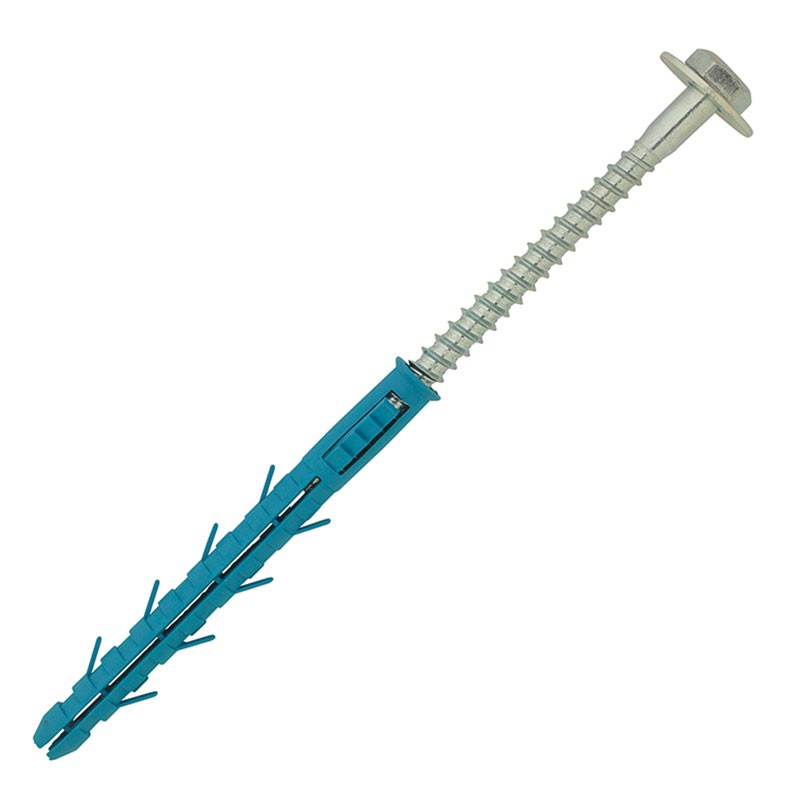

Nylon long expansion plug with spike

Nylon long expansion plug with spike

Efficient

Screw anchor designed to expand in the 2nd cell of the breeze block: safe, deep anchorage.

Polyvalent

Long lengths enable application on insulated walls.

Download PDF file

Dimensions

Technical data

Diameter length ØDrill tfix SW Hef Référence
Diamètre Ø perçage
mm		 épaisseur à fixer
mm		 Ouverture de clé
mm
12 130 12 40 17 90 STR12130
Diameter : 12
length : 130
ØDrill : 12
tfix : 40
SW : 17
Hef : 90
16 140 16 20 19 120 STR16140
Diameter : 16
length : 140
ØDrill : 16
tfix : 20
SW : 19
Hef : 120
16 160 16 40 19 120 STR16160
Diameter : 16
length : 160
ØDrill : 16
tfix : 40
SW : 19
Hef : 120
16 200 16 80 19 120 STR16200
Diameter : 16
length : 200
ØDrill : 16
tfix : 80
SW : 19
Hef : 120
16 240 16 120 19 120 STR16240
Diameter : 16
length : 240
ØDrill : 16
tfix : 120
SW : 19
Hef : 120
