Scell-it
HWA-MT
hwa-mtcheville-corps-creux-premium-acier-zingue-vis-ph2

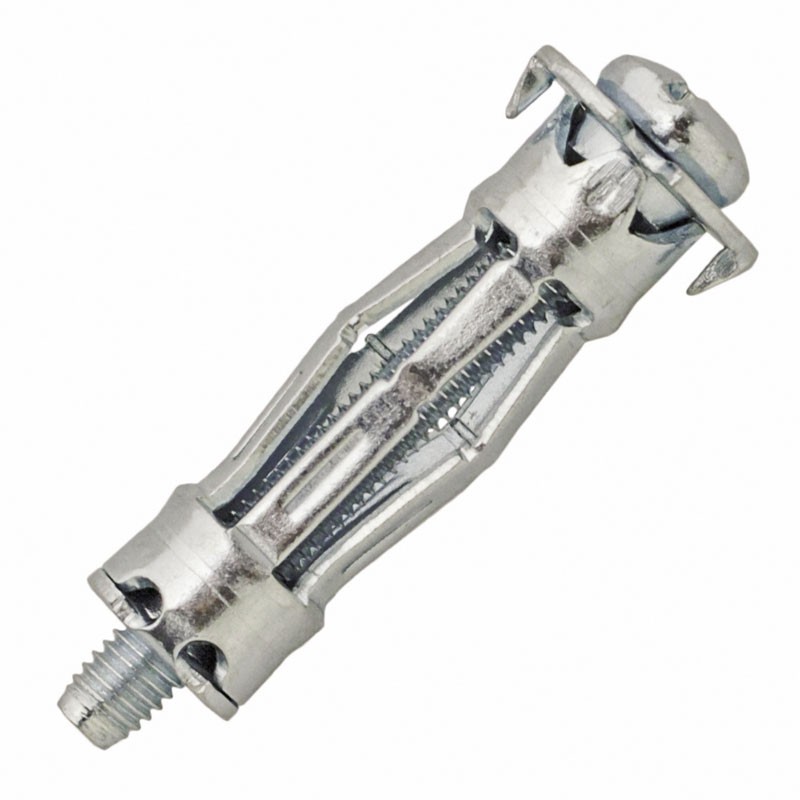

Hollow wall anchor - premium - Philips screw
Dimensions
Technical data
| Diameter | length | ØDrill | Lvis | material thickness | Référence | ||
|---|---|---|---|---|---|---|---|
| Diamètre | Ø perçage mm |
||||||
| M4 | 33 | 8 | 40 | 6-13 | HWA04033-MT | ||
|
Diameter : M4 length : 33 ØDrill : 8 Lvis : 40 material thickness : 6-13 |
|||||||
| M4 | 47 | 8 | 54 | 10-24 | HWA04047-MT | ||
|
Diameter : M4 length : 47 ØDrill : 8 Lvis : 54 material thickness : 10-24 |
|||||||
| M5 | 37 | 8 | 43 | 6-13 | HWA05037-MT | ||
|
Diameter : M5 length : 37 ØDrill : 8 Lvis : 43 material thickness : 6-13 |
|||||||
| M5 | 50 | 8 | 57 | 6-16 | HWA05050-MT | ||
|
Diameter : M5 length : 50 ØDrill : 8 Lvis : 57 material thickness : 6-16 |
|||||||
| M5 | 75 | 8 | 82 | 16-45 | HWA05075-MT | ||
|
Diameter : M5 length : 75 ØDrill : 8 Lvis : 82 material thickness : 16-45 |
|||||||
| M6 | 34 | 8 | 43 | 6-13 | HWA06034-MT | ||
|
Diameter : M6 length : 34 ØDrill : 8 Lvis : 43 material thickness : 6-13 |
|||||||
| M6 | 50 | 8 | 57 | 6-16 | HWA06050-MT | ||
|
Diameter : M6 length : 50 ØDrill : 8 Lvis : 57 material thickness : 6-16 |
|||||||
| M6 | 75 | 8 | 82 | 16-45 | HWA06075-MT | ||
|
Diameter : M6 length : 75 ØDrill : 8 Lvis : 82 material thickness : 16-45 |
|||||||
