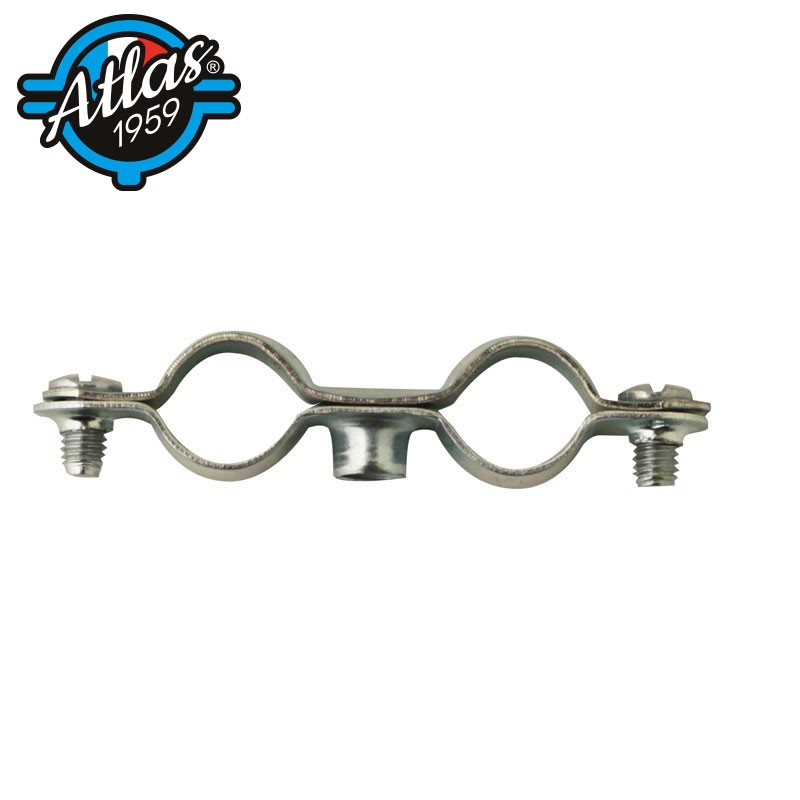

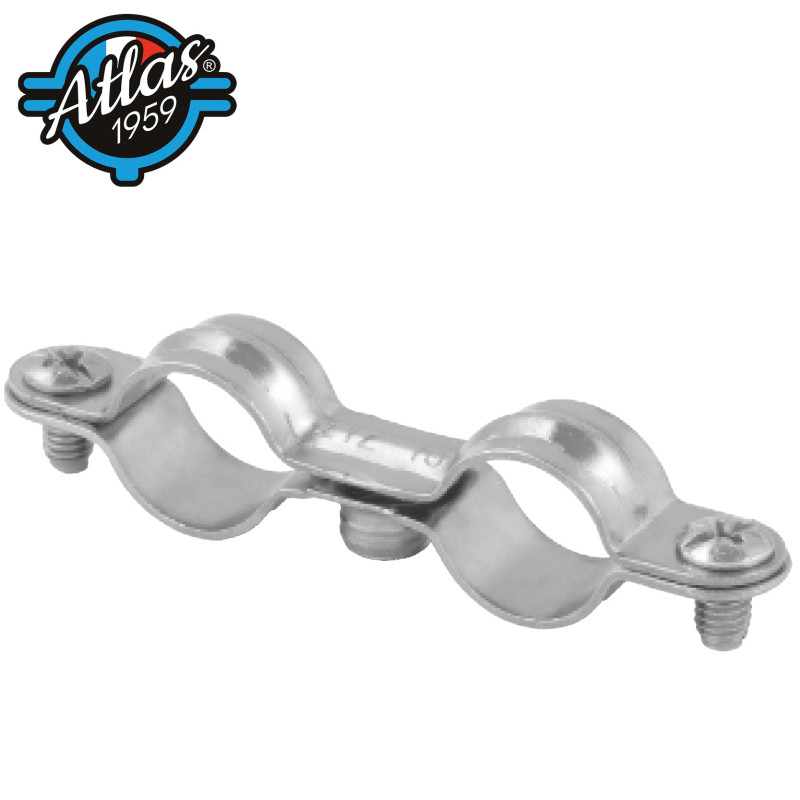

Bright zinc-plated steel pipe clip.
thickness 0.95 à 1.15 mm*
width 12 mm to 14 mm*.
Clamping screw M5x9mm
To be used with M7x150 flanged bracket screw.
* according to the dimensions, see table.
Diameter | Référence | |||||||
---|---|---|---|---|---|---|---|---|
Diamètre | ||||||||
10 | CD10 | |||||||
Diameter : 10 : |
||||||||
12 | CD12 | |||||||
Diameter : 12 : |
||||||||
14 | CD14 | |||||||
Diameter : 14 : |
||||||||
16 | CD16 | |||||||
Diameter : 16 : |
||||||||
18 | CD18 | |||||||
Diameter : 18 : |
||||||||
20 | CD20 | |||||||
Diameter : 20 : |
||||||||
22 | CD22 | |||||||
Diameter : 22 : |
||||||||
24 | CD24 | |||||||
Diameter : 24 : |
||||||||
28 | CD28 | |||||||
Diameter : 28 : |
Bright zinc-plated steel pipe clip.
thickness 0.95 à 1.15 mm*
width 12 mm to 14 mm*.
Clamping screw M5x9mm
To be used with M7x150 flanged bracket screw.
* according to the dimensions, see table.
