Scell-it
THR
thr_tete-hexagonale-rondelle-etanche-epdm-acier-zingue-blanc

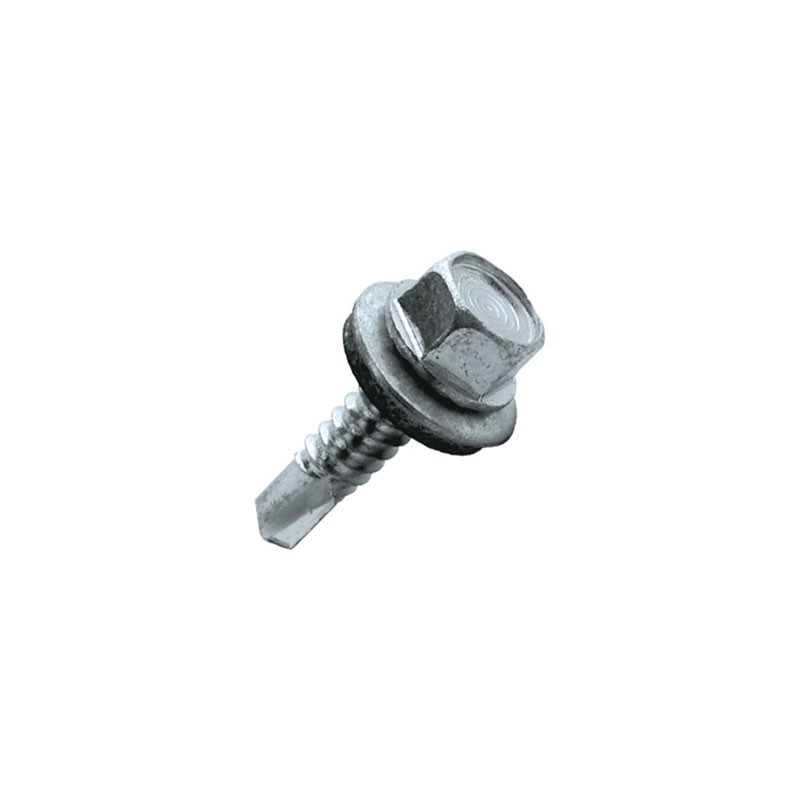

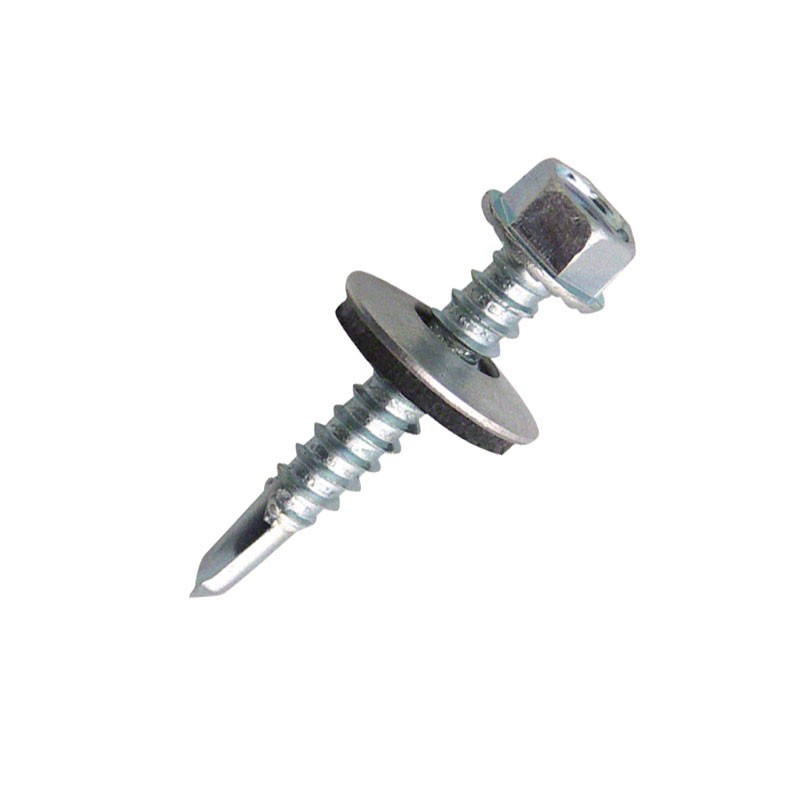

bright zinc-plated steel, hexagonal-headed, waterproof EPDM washer
Dimensions
Technical data
| Diameter | length | G | Shear | Tensile | Drill capacity for steel | wrench | maximum speed | Socket | Référence | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diamètre | |||||||||||||||||
| 4.8 | 16 | 7 | 6280 | 10000 | 4.0 | 7000 | 2000 | 8.0 | THR14-48016 | ||||||||
|
Diameter : 4.8 length : 16 G : 7 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : 8.0 |
|||||||||||||||||
| 4.8 | 19 | 10 | 6280 | 10000 | 4.0 | 7000 | 2000 | 8.0 | THR14-48019 | ||||||||
|
Diameter : 4.8 length : 19 G : 10 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : 8.0 |
|||||||||||||||||
| 4.8 | 25 | 16 | 6280 | 10000 | 4.0 | 7000 | 2000 | 8.0 | THR14-48025 | ||||||||
|
Diameter : 4.8 length : 25 G : 16 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : 8.0 |
|||||||||||||||||
| 4.8 | 32 | 23 | 6280 | 10000 | 4.0 | 7000 | 2000 | 8.0 | THR14-48032 | ||||||||
|
Diameter : 4.8 length : 32 G : 23 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : 8.0 |
|||||||||||||||||
| 4.8 | 38 | 28 | 6280 | 10000 | 4.0 | 7000 | 2000 | 8.0 | THR14-48038 | ||||||||
|
Diameter : 4.8 length : 38 G : 28 Shear : 6280 Tensile : 10000 Drill capacity for steel : 4.0 wrench : 7000 maximum speed : 2000 Socket : 8.0 |
|||||||||||||||||
| 5.5 | 19 | 9 | 8360 | 12500 | 5.0 | 10500 | 1750 | 8.0 | THR16-55019 | ||||||||
|
Diameter : 5.5 length : 19 G : 9 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : 8.0 |
|||||||||||||||||
| 5.5 | 25 | 15 | 8360 | 12500 | 5.0 | 10500 | 1750 | 8.0 | THR16-55025 | ||||||||
|
Diameter : 5.5 length : 25 G : 15 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : 8.0 |
|||||||||||||||||
| 5.5 | 32 | 22 | 8360 | 12500 | 5.0 | 10500 | 1750 | 8.0 | THR16-55032 | ||||||||
|
Diameter : 5.5 length : 32 G : 22 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : 8.0 |
|||||||||||||||||
| 5.5 | 38 | 28 | 8360 | 12500 | 5.0 | 10500 | 1750 | 8.0 | THR16-55038 | ||||||||
|
Diameter : 5.5 length : 38 G : 28 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : 8.0 |
|||||||||||||||||
| 5.5 | 75 | 65 | 8360 | 12500 | 5.0 | 10500 | 1750 | 8.0 | THR16-55075 | ||||||||
|
Diameter : 5.5 length : 75 G : 65 Shear : 8360 Tensile : 12500 Drill capacity for steel : 5.0 wrench : 10500 maximum speed : 1750 Socket : 8.0 |
|||||||||||||||||
| 6.3 | 25 | 14 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63025 | ||||||||
|
Diameter : 6.3 length : 25 G : 14 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 32 | 21 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63032 | ||||||||
|
Diameter : 6.3 length : 32 G : 21 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 38 | 27 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63038 | ||||||||
|
Diameter : 6.3 length : 38 G : 27 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 45 | 34 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63045 | ||||||||
|
Diameter : 6.3 length : 45 G : 34 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 50 | 39 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63050 | ||||||||
|
Diameter : 6.3 length : 50 G : 39 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 63 | 52 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63063 | ||||||||
|
Diameter : 6.3 length : 63 G : 52 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 75 | 64 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63075 | ||||||||
|
Diameter : 6.3 length : 75 G : 64 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
| 6.3 | 100 | 89 | 12270 | 17000 | 6.0 | 17000 | 1500 | 5.0 | THR16-63100 | ||||||||
|
Diameter : 6.3 length : 100 G : 89 Shear : 12270 Tensile : 17000 Drill capacity for steel : 6.0 wrench : 17000 maximum speed : 1500 Socket : 5.0 |
|||||||||||||||||
