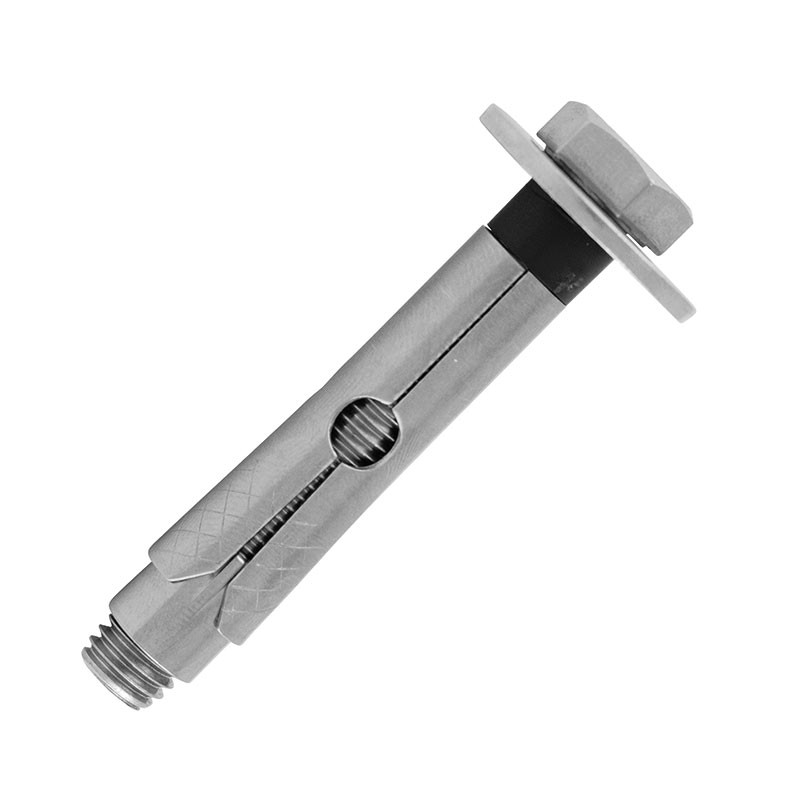

Sleeve anchor - stainless steel

Throughbolt

Enables rapid installation through the fixing material.

Robust

Strengthened assembly thanks to the PVC ring's anti-rotation ribs for optimum grip.

Download PDF file

Dimensions

Technical data

Diameter length h1 ØDrill tfix SW Référence
Diamètre Prof perçage
mm
Ø perçage
mm
épaisseur à fixer
mm
Ouverture de clé
mm
M6 45 55 8 5 10 A2-HBPLUS08/5
Diameter : M6
length : 45
h1 : 55
ØDrill : 8
tfix : 5
SW : 10
M8 60 60 10 5 13 A2-HBPLUS10/5
Diameter : M8
length : 60
h1 : 60
ØDrill : 10
tfix : 5
SW : 13
M8 80 60 10 25 13 A2-HBPLUS10/25
Diameter : M8
length : 80
h1 : 60
ØDrill : 10
tfix : 25
SW : 13
M10 70 70 12 5 17 A2-HBPLUS12/5
Diameter : M10
length : 70
h1 : 70
ØDrill : 12
tfix : 5
SW : 17
M10 100 70 12 35 17 A2-HBPLUS12/35
Diameter : M10
length : 100
h1 : 70
ØDrill : 12
tfix : 35
SW : 17
